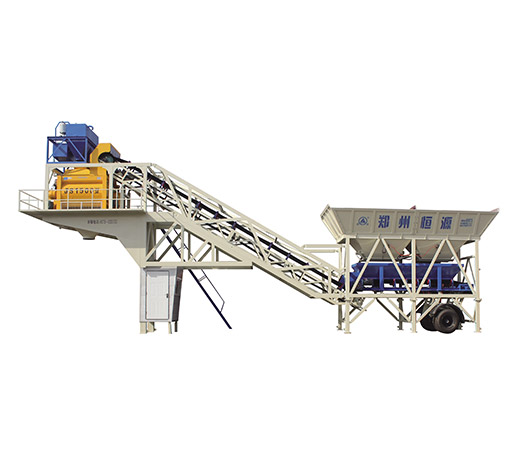

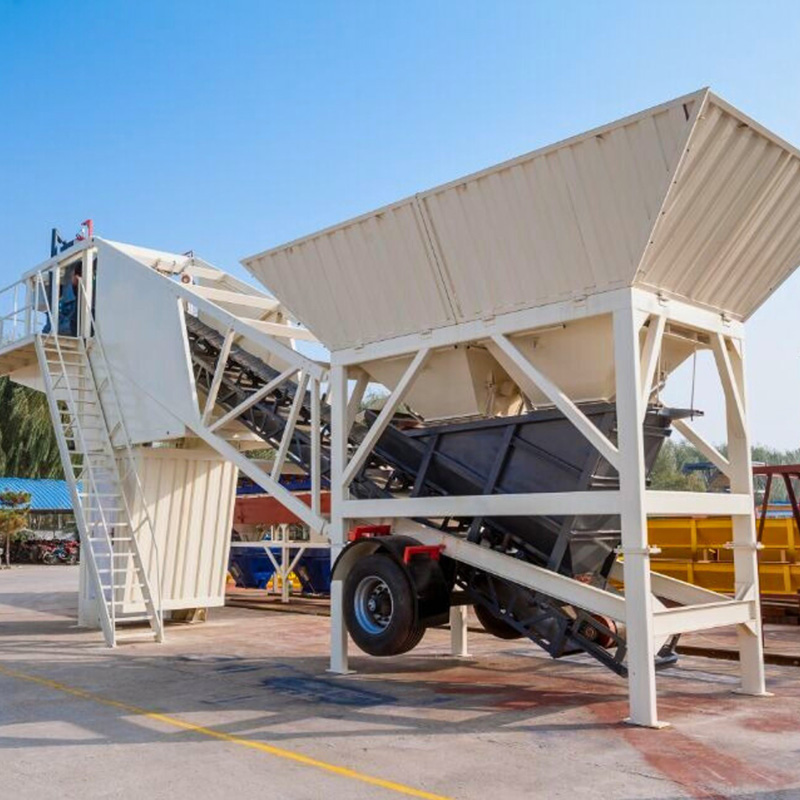

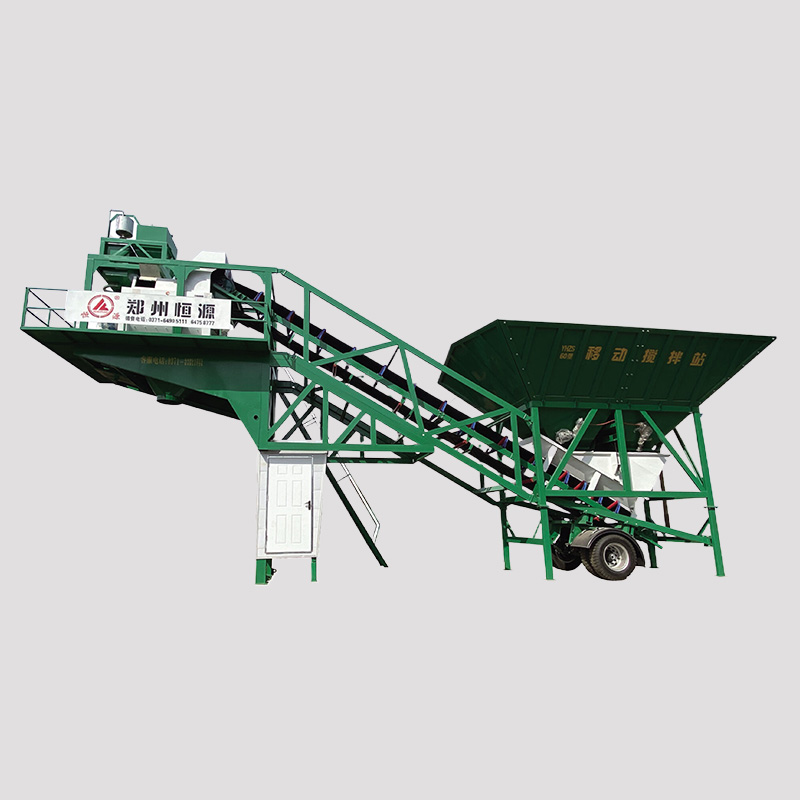

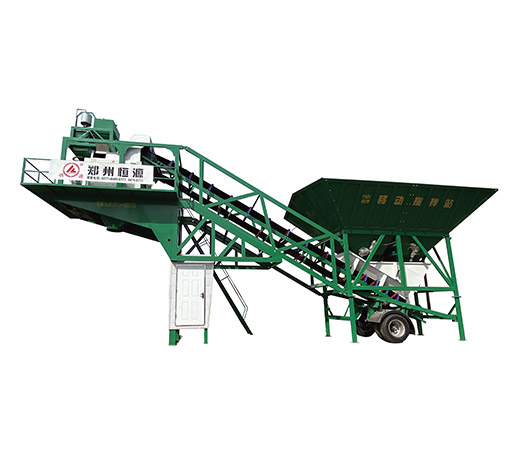

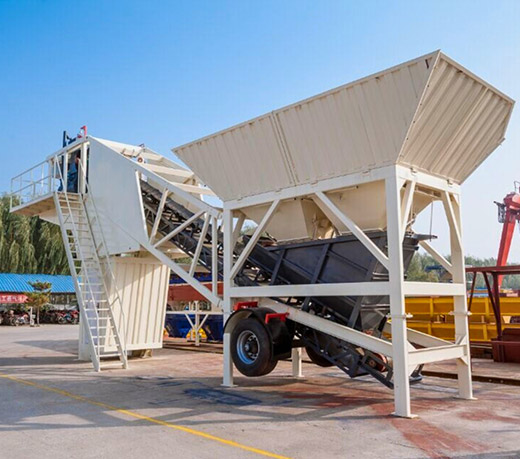

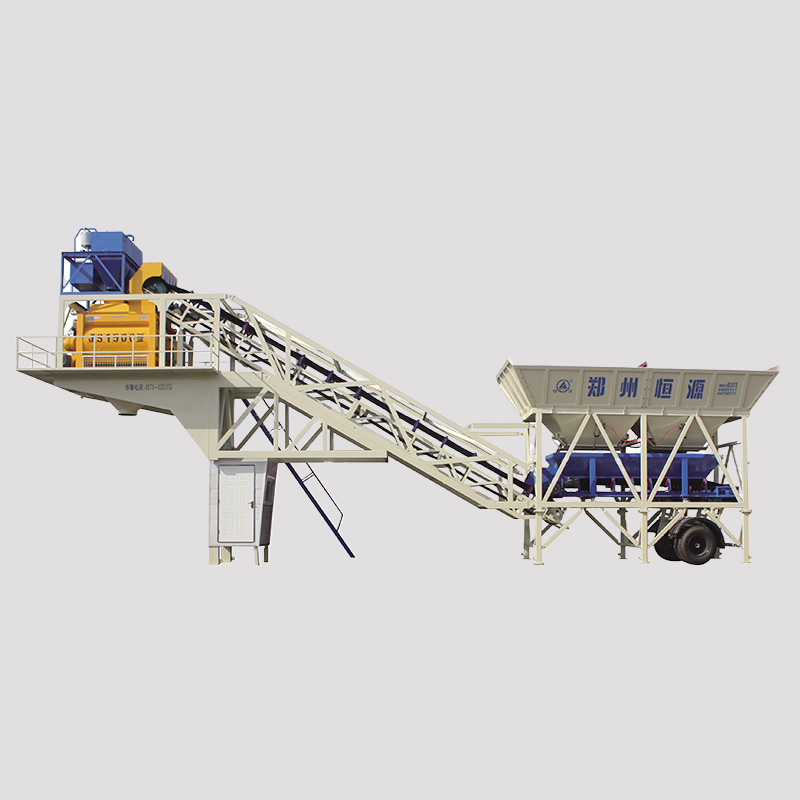

YHZS-3.8 Mobile Plant

It is a machine for producing concrete in mass and automatically, which occupies small space and is easy to transport. It is possible to transfer the entire mobile mixing plant with 1 or 2 trailers.

Capacity : 25-75m³/h

Features

Product Details

  • 1. Full automatic control system, PLC with SIEMENS brand, Main electric components with Schneider/CHNT brand.
  • 2. Control panel & system language can be cutomized.
  • 3. Mixing system selection JS/SICOMA twin shaft concrete mixer or planetary mixer, high efficiency, high mixing quality.

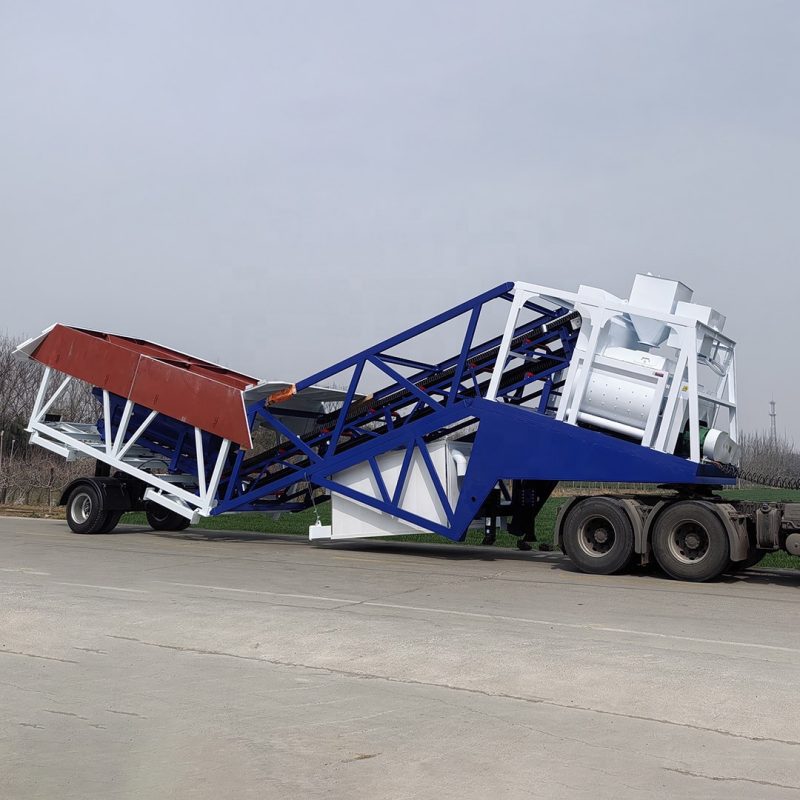

  • 4. Easy transportation and no more installation except the first time.
  • 5. Control room can be folded, and with heat-resistant material and Midea/Gree air conditioner.
  • 6. Batching machine with 2 or 4 aggregate storage bins.

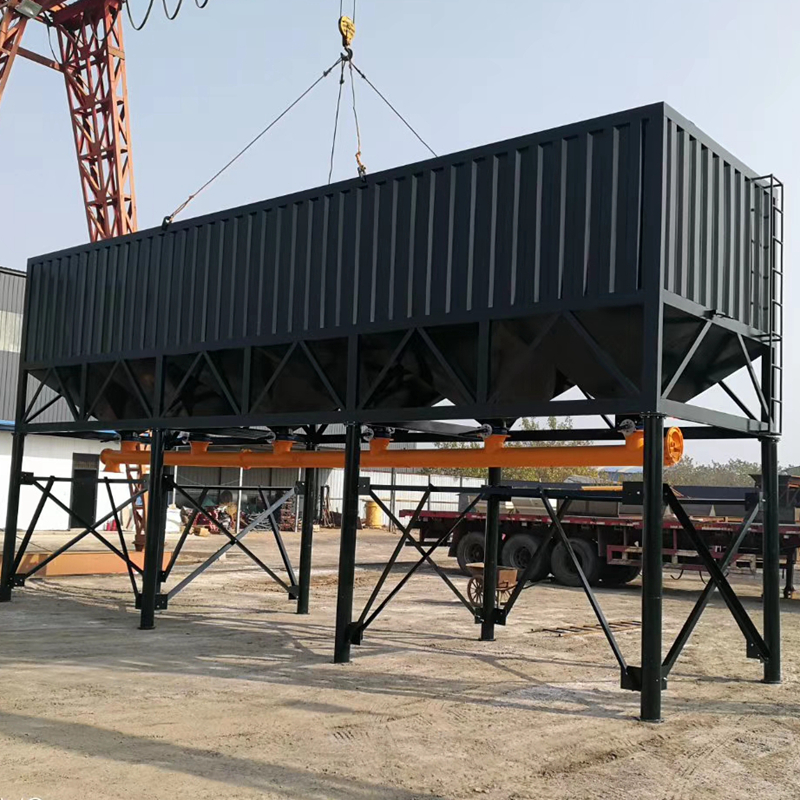

  • 7. Cement silos special design for shipping ( 4sets/40HQ )
  • 8. 18 months warranty.
  • 9. Whole design can be customized ( mixer, batching machine, silos, color, etc)

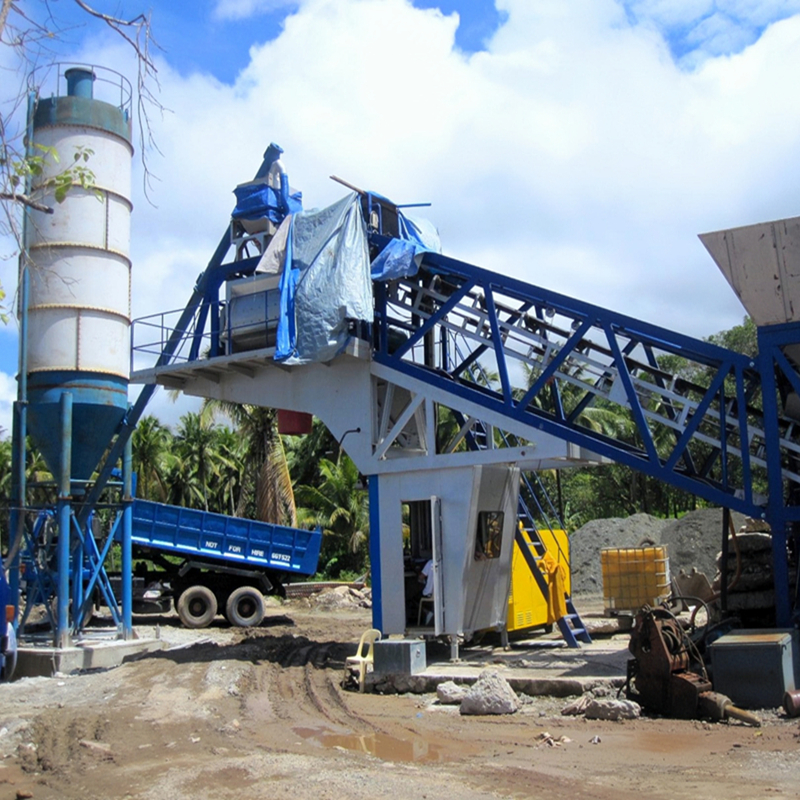

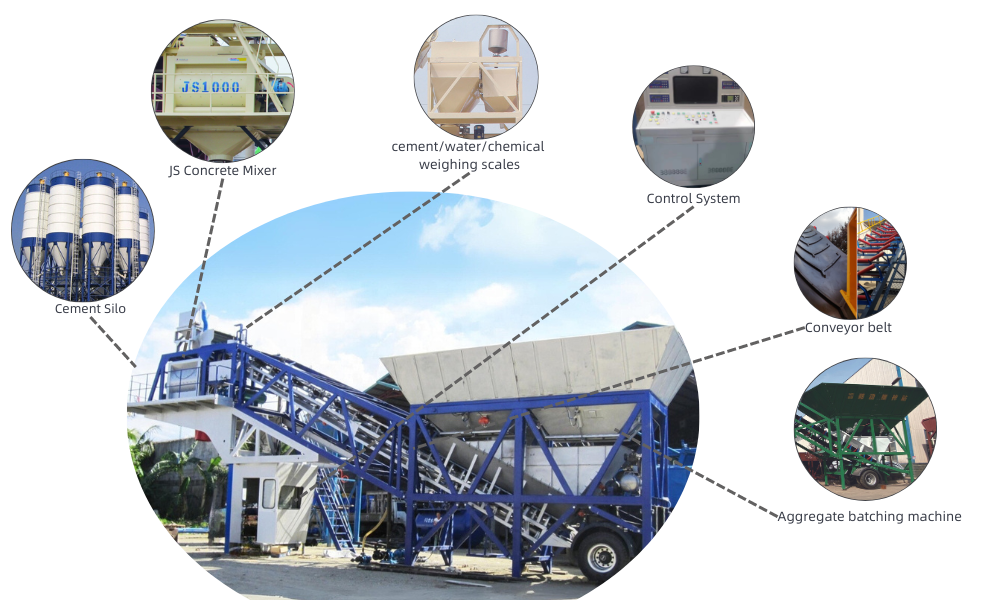

YHZS mobile concrete batching plant1





Product Features

  • 1. Rapid and easily to assemble and disassemble, conveniently to transport. All of the cable connection don't need to be unloaded,except the external equipment such as screw conveyor and cement silo, etc.
  • 2. The performance of mixing is perfect. It adopts twin-shaft concrete mixer to make the concrete mixing equally in shortest time.For different mixture radios of dry concrete, semi-dry concrete, or plastic concrete, it can make the mixing well.
  • 3. Top-quality configuration, high reliability, accurate measurement, easy operation. The main electric components on concrete mixer reducers, scale load cells and control system are imported brands, which can reduce the failure rate and increase the scale accurate of the equipment.

Product Parameter

Model YHZS25 YHZS35 YHZS50 YHZS75 YHZS100
Capacity 25m3/h 35m3/h 50m3/h 75m3/h 100m3/h
Mixing system Twin-shaft concrete mixer
Discharging height 3800mm
Max. Dragging Speed 40km/h
After-sale service Erection & commissioning, operator training
Warranty 18months
Concrete mixer JS500 JS750 JS1000 JS1500 JS2000
Aggregate batching machine PLD800 PLD1200 PLD1600 PLD2400 PLD2400
Aggregate feediing way Belt conveyor
Weighing system Water, Cement, Fly-Ash, Additive
Weighing precision ±1%
Air system Air compressor, etc
Dragging chassis Drag rod & Leading steering, Front/Back axle & shock absorption, back wheel, Outrigger
Optional Items
Screw conveyor diameter & length Ø219mm/273mm, L=8000mm/9000mm
Cement silo capacity 50t/100t/150t/200t
