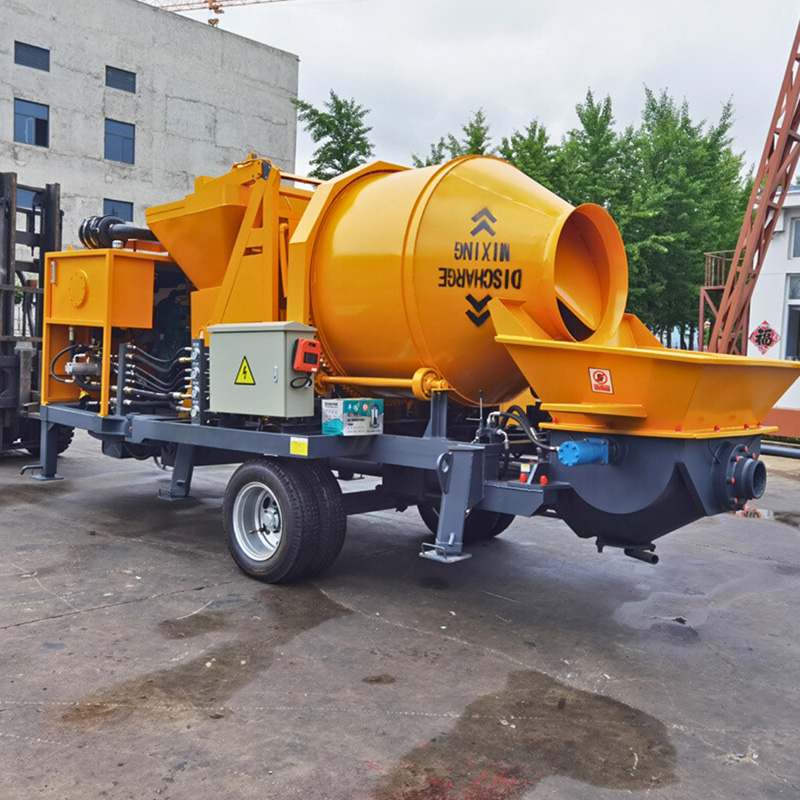

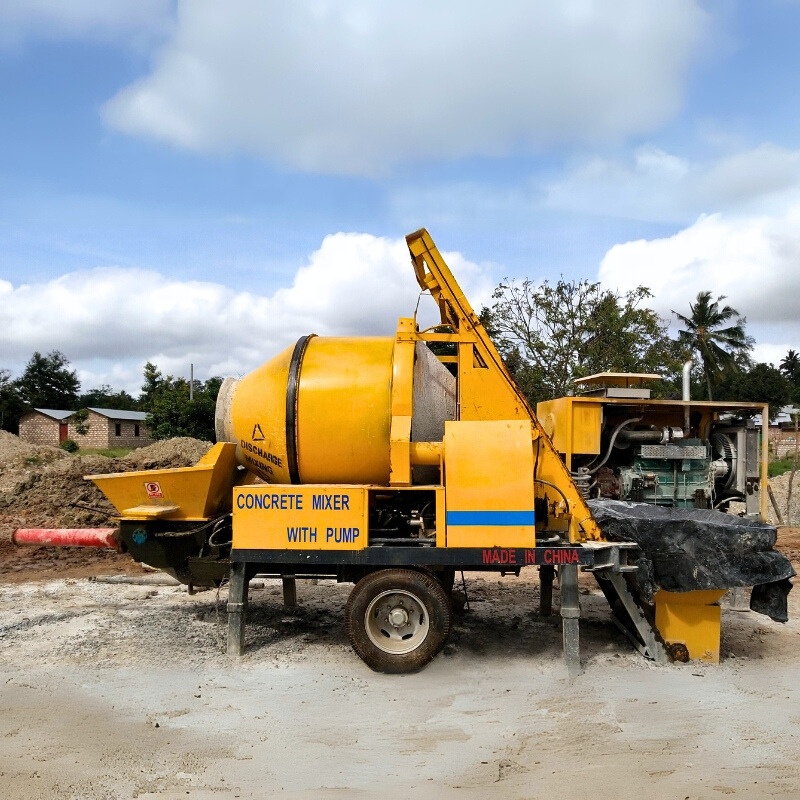

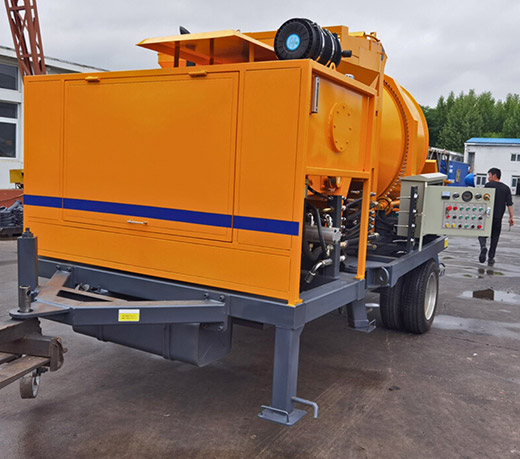

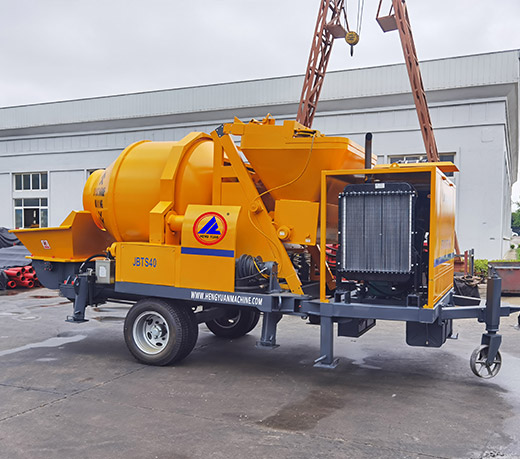

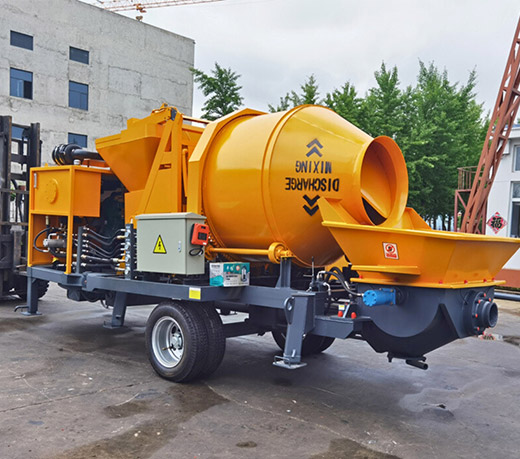

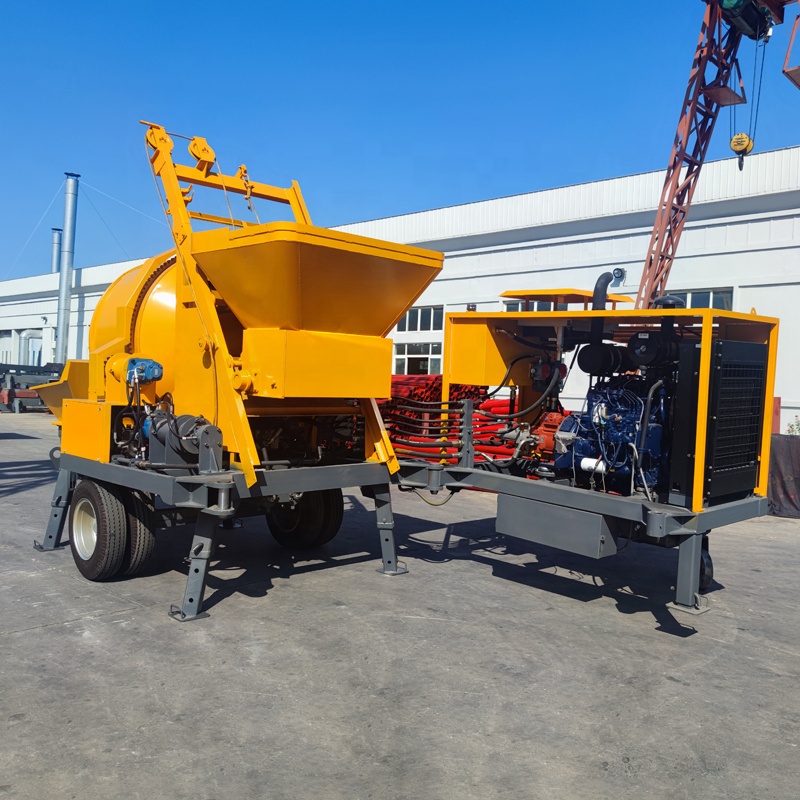

Diesel Concrete Mixer Pump

The Concrete mixing trailer pump is a new type of equipment that combines functions of concrete mixer and concrete trailer pump. It uses fully hydraulic pumping system and is characterized by large concrete ﬁlling quantity and stable performance as well as smaller volume and smaller operating space. This equipment is applicable to medium and small size house constructions ranging from 2 ﬂoors to 12 ﬂoors as well as other various projects such as mine caves, road and railway tunnels, water conservation and hydro-power engineering, and slope protection for geological disasters.

Capacity : 30-40m³/h

Send Message Inquiry Now

Features

Product Details

1. The diesel engine adopt to Cummins/Weichai-Deutz/Weifang brand, which are famous brand in the world.

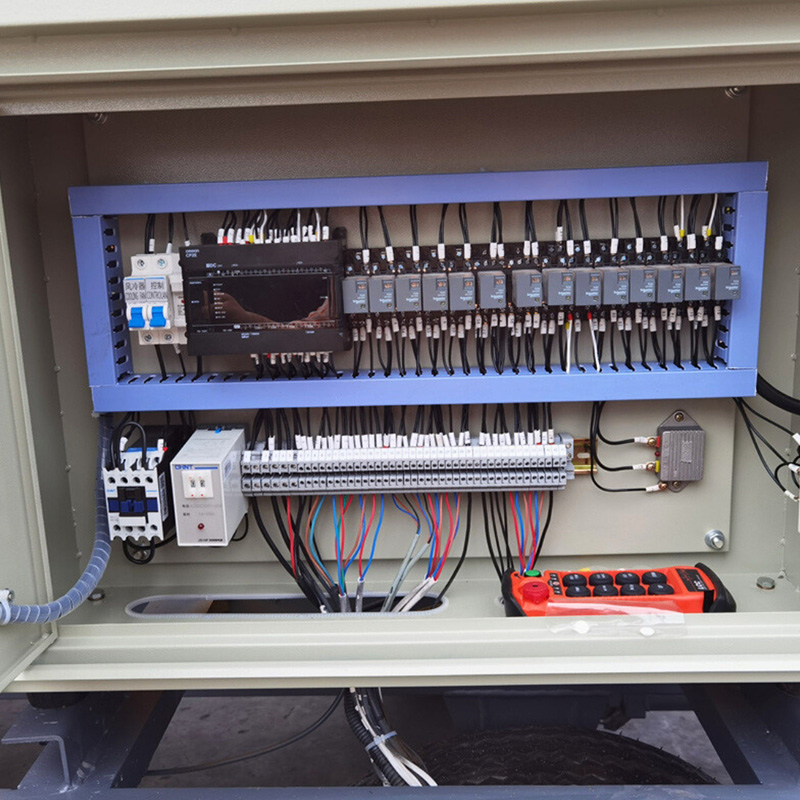

2. The control sytem can be control by local and remote. PLC with Siemens/Omron brand, electric components with Schneider/CHNT brand
3. The main hydraulic pump adopt to Kawassaki brand.
4. Main oil pump. Adopt domestic famous brand Kawasaki series.
5. The mixer pump adopt to twin tyres, for ensuring the heavy load.
6. Each concrete mixer pump include 100m concrete pipes and accessories (clamps, rubbers, cleaning balls, free spares, etc.)

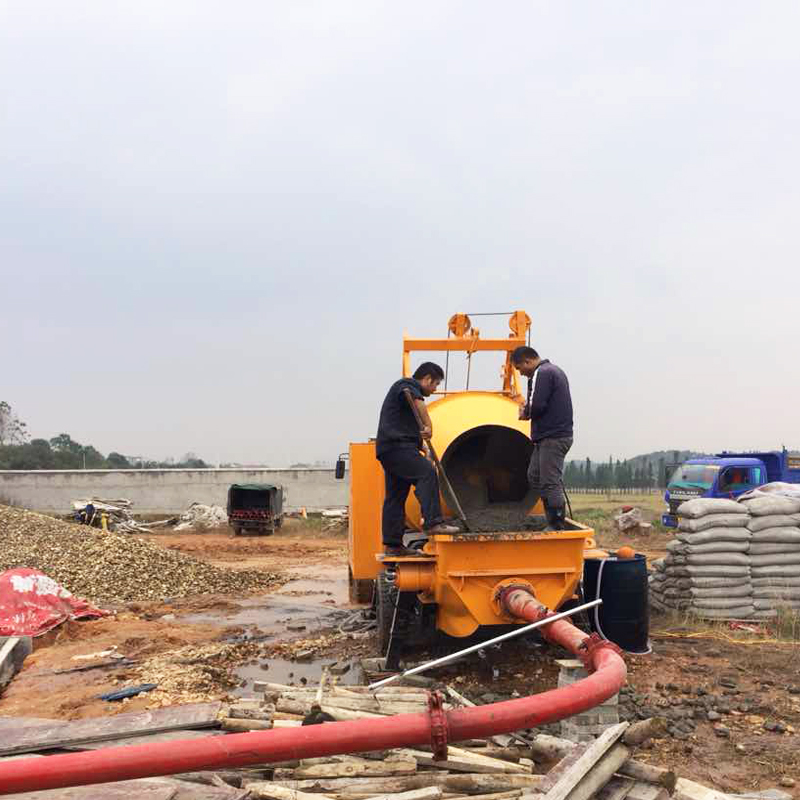

7. The machine can pump the concrete self mixed and commercial concrete.
8. The hydraulic cylinder and concrete cylinder with standard size for ensuring the pumping capacity.
9. Mixing and pumping can work simultaneously.

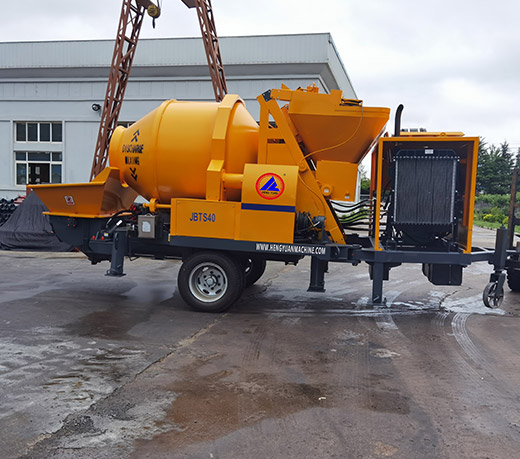

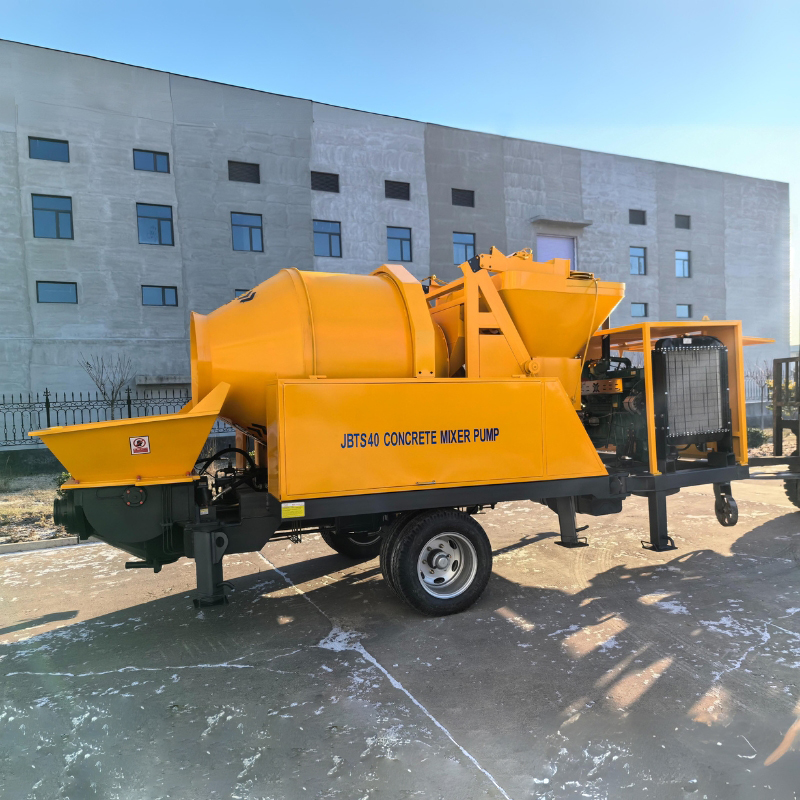

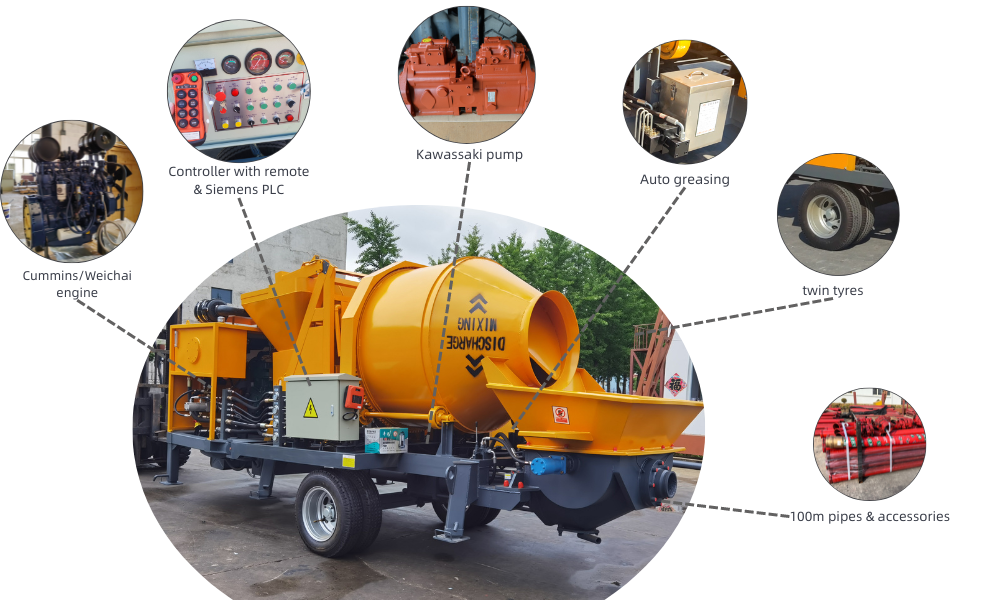

JBTS concrte mixer pump

Product Features

1. Adopt Open hydraulic system, which is with stable and reliable performance, low failure rate
2. Integration control for mixing and pumping, wireless remote control which makes operation convenient.
3. Adopt wear-resistant alloy materials for the concrete mixer, prolong the service life
4. Main oil pump. Adopt domestic famous brand Kawasaki series.
5. Lubrication system. Adopt automatic lubrication system, high oil pressure with stable lubrication eﬀect.
6. Power system. Adopt domestic and world famous motor or diesel engine.

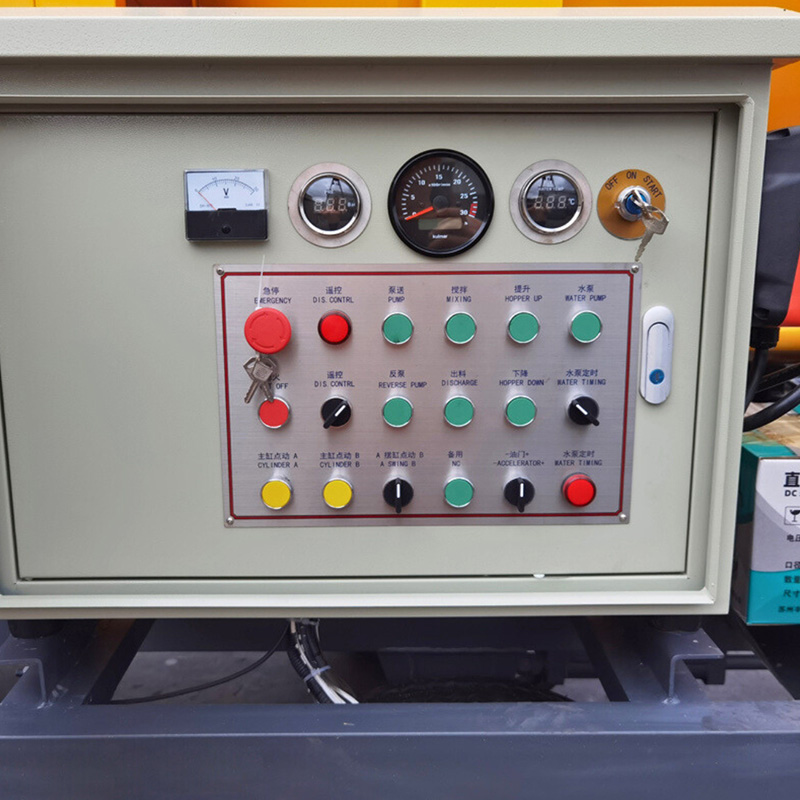

7. Control system. Adopt Japan Omron PLC control system, equipped with wireless remote control, makes the operation more ﬂexible and convenient.
8. S valve. Wear-resistant cast iron materials, enjoys the advantages of anti-high pressure and anti-wearing.
9. Concrete piston. Precisely processed by imported material, enjoys the features of hydraulic resistant, wear resistant and high temperature resistant.

Product Parameter

Unit		JBTS30	JBTS40
Theoretical output	m³/h	30	40
Max. concrete pumping pressure	Mpa	10	10
Power type		Motor	Motor
Main diesel engine	kw	82	82
Main oil pump		Kawasaki	Kawasaki
Main oil pump capacity	ml/min	71	112
Theoretical delivery distance	m	120/350	160/500
Hopper capacity	L	550	550
Max. aggregate diameter	mm	20/30	30/40
Inside diameter of delivery pipe	mm	Φ125	Φ150
Loading capacity of the mixer	L	560	720
Unloading capacity of the mixer	L	350	450
Mixing motor	kw	5.5	5.5
Hoisting motor	kw	4.5	4.5
Dimension length x width x height	mm	4500x2200x2800	4800x2200x2800
Total weight	kg	5000	5500
