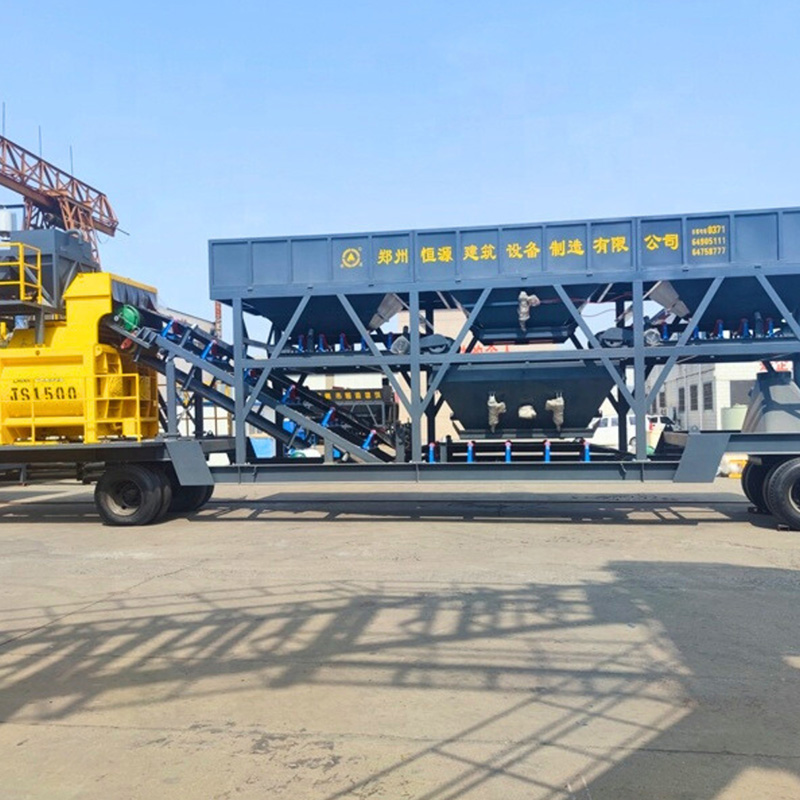

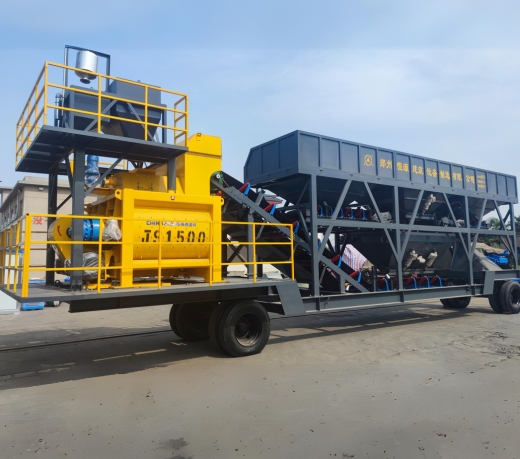

YHZS-1.3 Mobile plant

It is a machine for producing concrete in mass and automatically, which occupies small space and is easy to transport. It is possible to transfer the entire mobile mixing plant with 1 or 2 trailers. It can match the concrete pump using together.

Capacity : 25-100m³/h

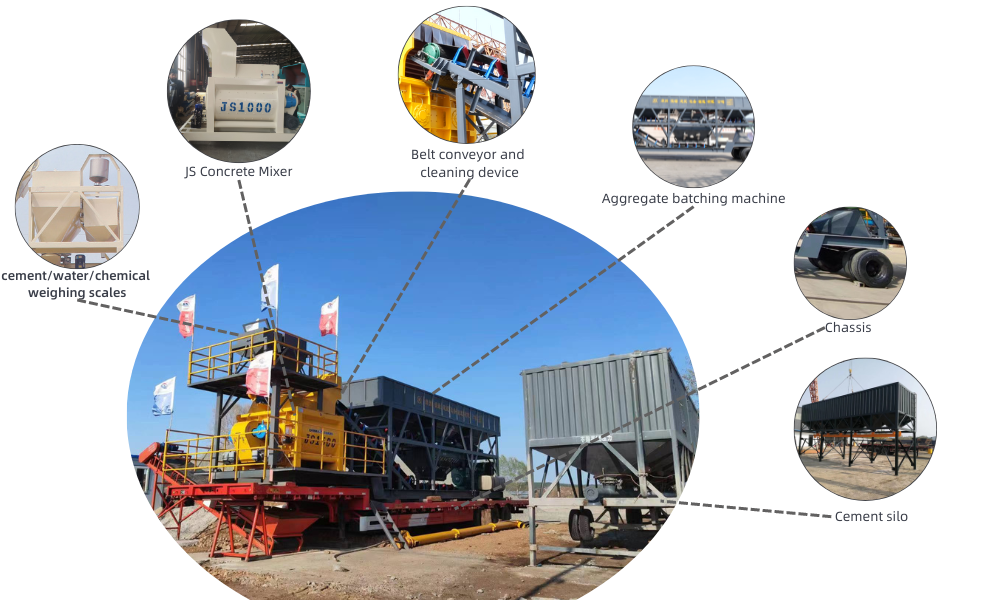

Product Details

  • 1. With water/cement/additive weighing scales, accurate measurement improves concrete quality;
  • 2. JS type twin shaft concrete mixer, highly improve the concrete quality;
  • 3. Conveyor with cleaning device, to ensure the material will not stick on the belt;
  • 4. The batching machine and mixer are installed in a same chassis with wheels, for saving working space and improving the movement;
  • 5. Cement silo can be use bolted type or horizontal type ( mobile/stationary ).


YHZS-1.3 mobile batching plant


Product Features

  • 1. Quickly mix the concrete mixture average,compared with ordinary mobile batching and mixing plant, it has a compact structure;
  • 2. this mobile type batching plant installations are very easy to use and maintain on site;
  • 3. Easy to move the machine as the plant comes with mobility and towing arrangement;
  • 4. Cheaper than the ordinary one which can help save customers budgets;
  • 5. Digital load cell based weighing of cement and aggregate while water and additive is based on timer based accurate discharge system.

Product Parameter

Model YHZS25-2 YHZS35-3 YHZS50-3 YHZS75-3 YHZS100-4
Theory capacity m³/h 25 35 50 75 100
Discharging height mm 1300
Total power kw 51.5 65 75 105 121.5
Total weight T 13 15 16 17 28
Mixing System Model of Mixer JS500 JS750 JS1000 JS1500 JS2000
Mixing motor kw 18.5KW 30KW 18.5KW*2 30KW*2 37KW*2
Discharging volume L 500 750 1000 1500 2000
Aggregate System Model of Batcher PLD800-2 PLD1200-3 PLD1600-3 PLD2400-3 PLD3200-4
Aggregate Storage 4m³×2 5.5m³×3 6m³×3 8.5m³×3 14m³×4
Max. Aggregate Dia mm 60/80
Measurement System Cement weighing kg 500 500 560 900 1200
Water weighing kg 220 220 220 330 400
Additive weighing kg 30 30 30 40 50
Trailer Speed Km/h 40-60 40-60 40-60 40-60 40-60
Optional cement silo T 50/100 50/100 50/100 50/100 Oct-50

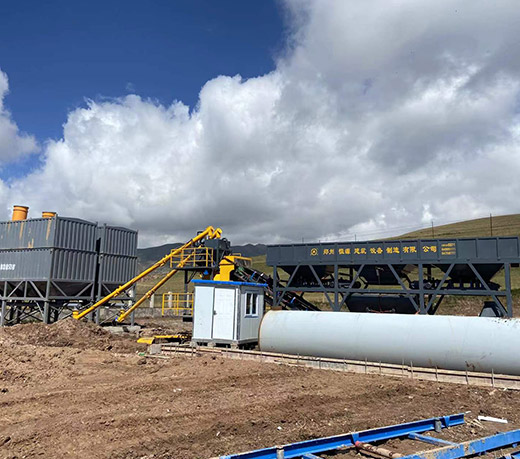

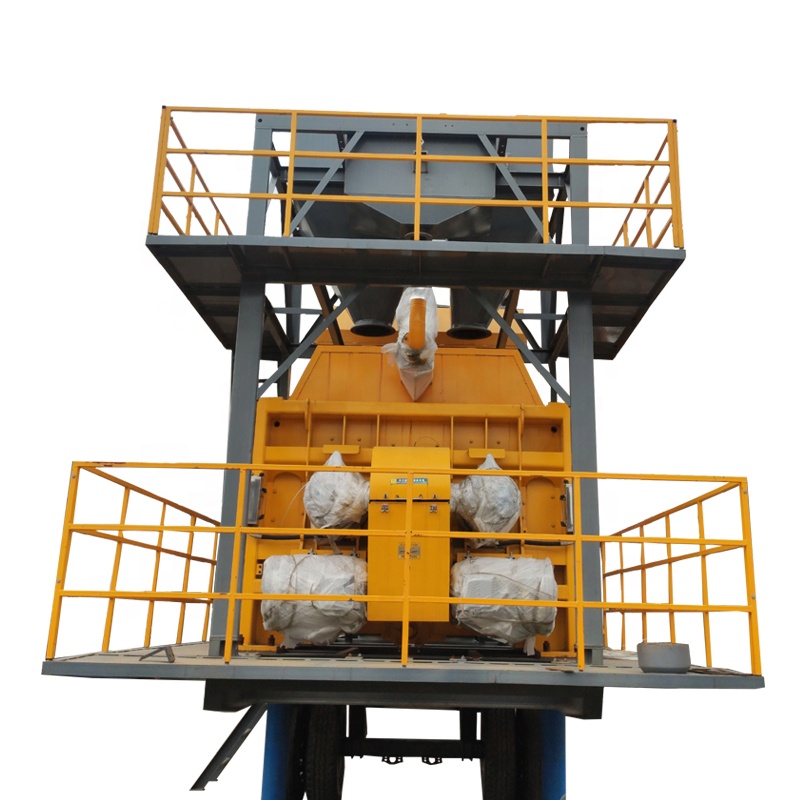

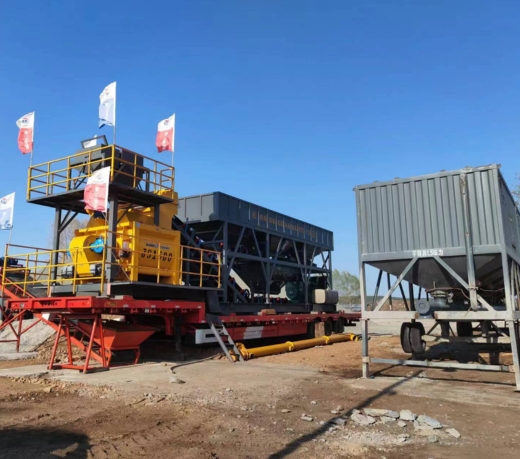

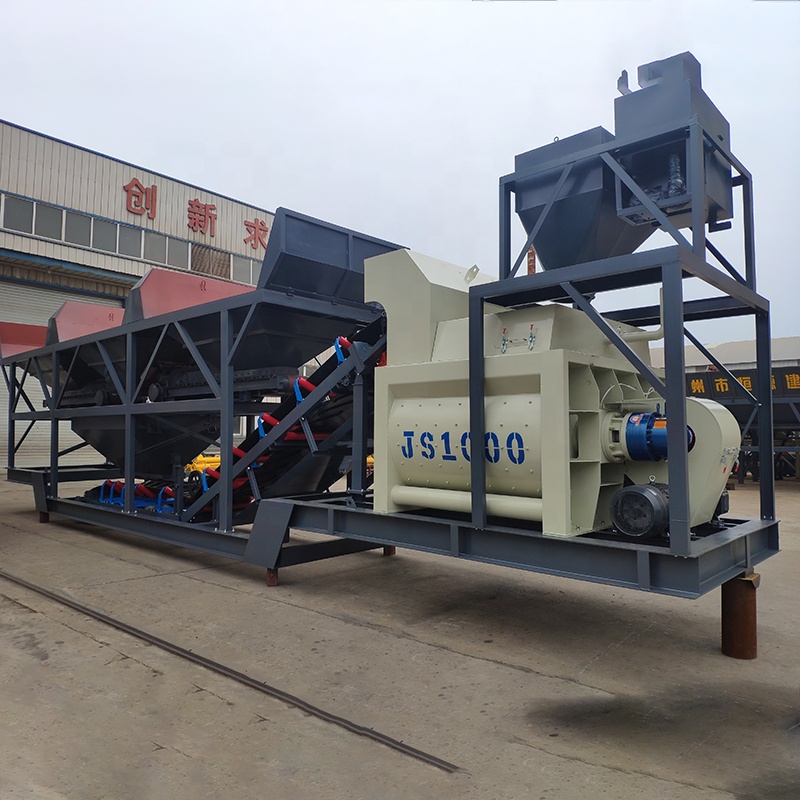

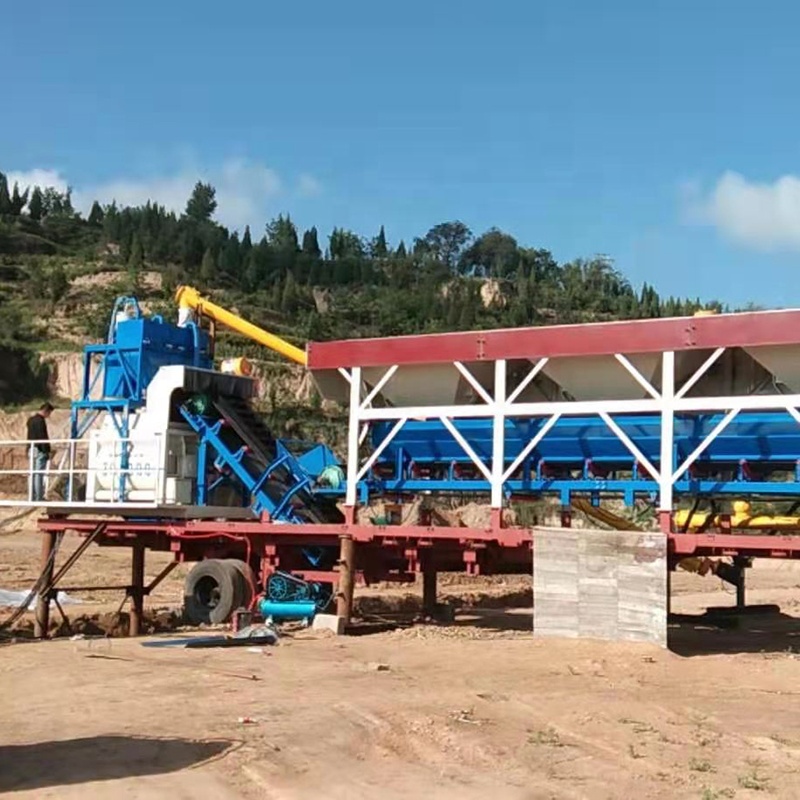

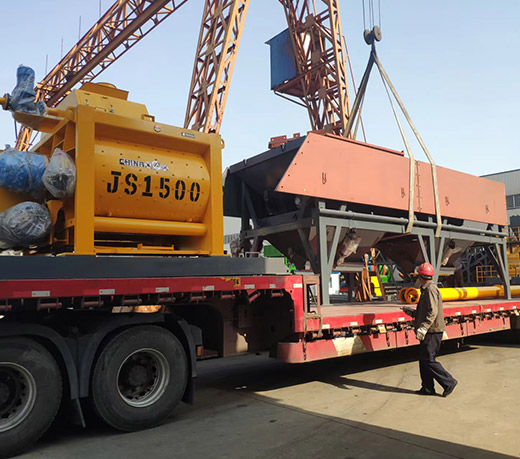

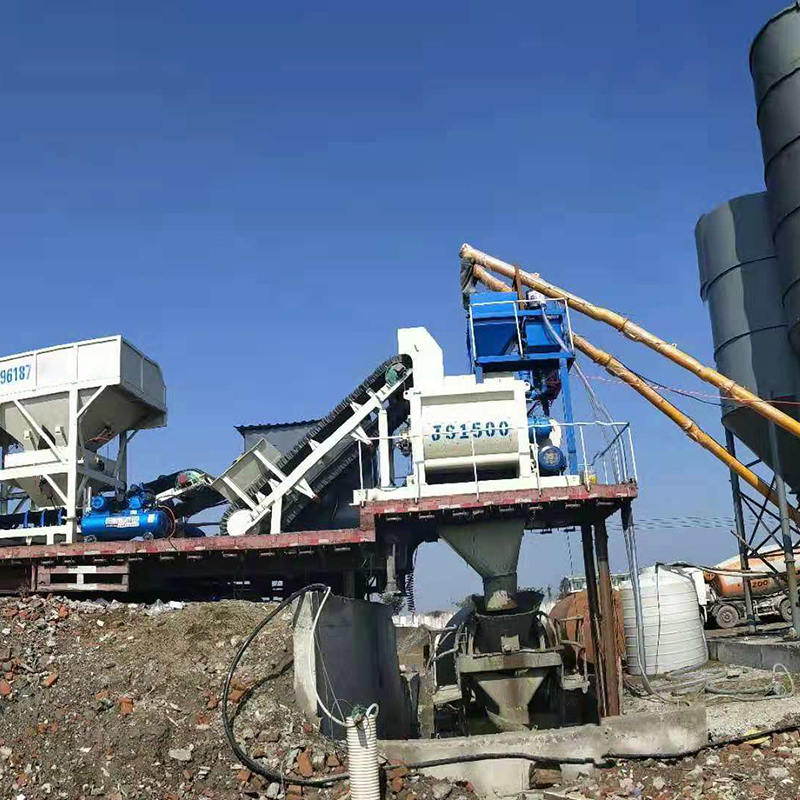

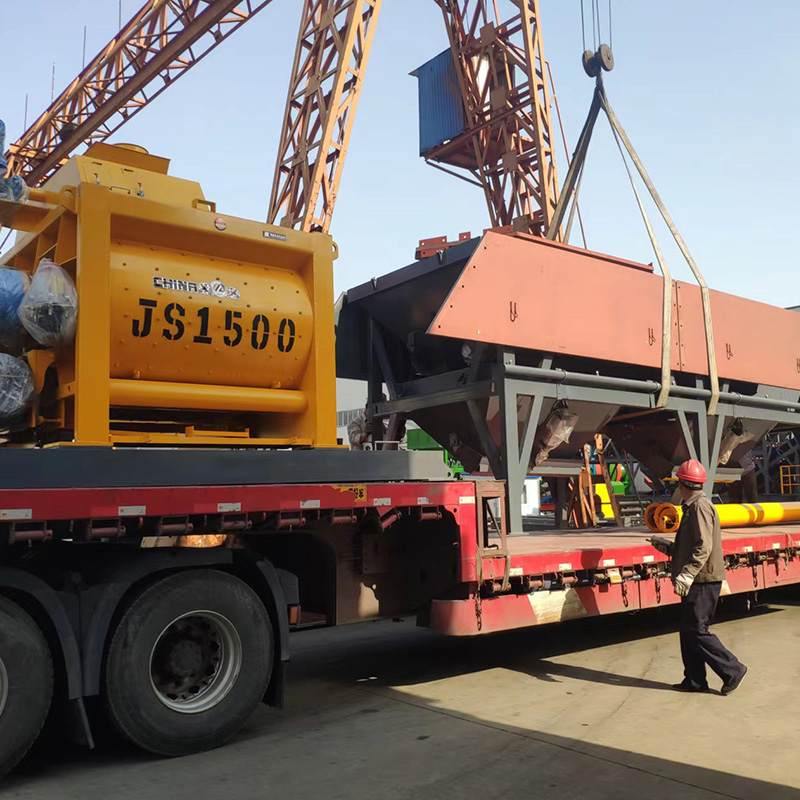

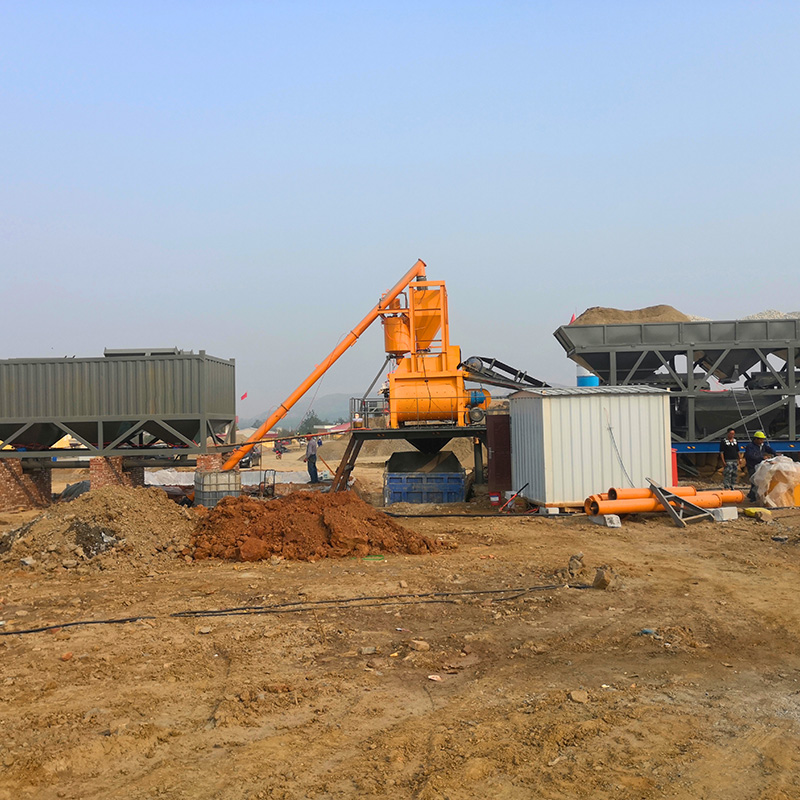

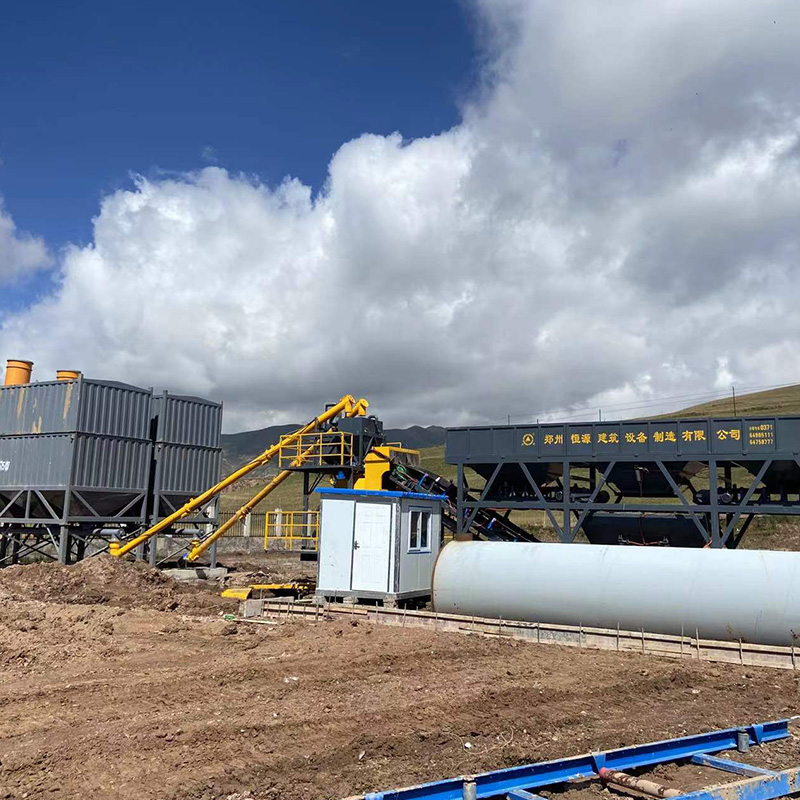

Product Display
