Belt Feeding Concrete Plant

The concrete batching plant is a concrete production facility with a high degree of mechanization and automation. It uses precise weighing and mixing technology to ensure the quality of concrete production.

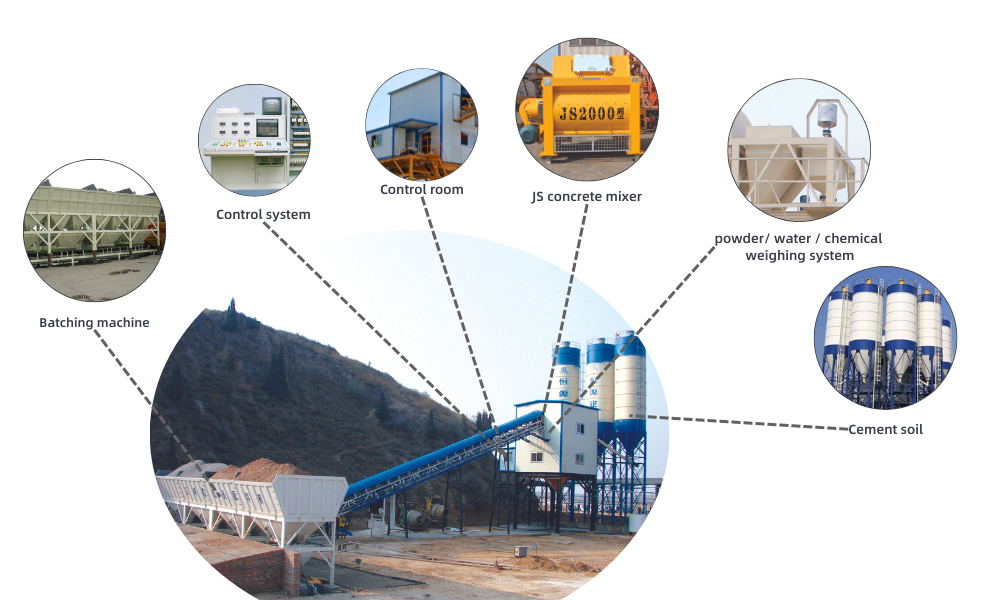

HZS Belt type concrete batching plant consists of aggregate / fly ash / cement / additive / water batching system, mixing system and automatic control system etc, they are widely used in big and medium construction projects, road, bridge project, and concrete precast factory. It’s the best choice for the commercial concrete supplier.

Capacity : 60-270m³/h


Product Details

  • 1. Full automatic control system, PLC with SIEMENS brand, Main electric components with Schneider/CHNT brand.
  • 2. Control language is cutomized.
  • 3. Mixing system selection JS/SICOMA twin shaft concrete mixer, high efficiency, high mixing quality.
  • 4. Aggregate batching machine loading height is cutomized ( 0-5m).
  • 5. Control room with heat-resistant material and Midea/Gree air conditioner.
  • 6. Quick Installastion and Convenient for maintenance .
  • 7. 18 months warranty
  • 8.Whole design can be customized ( mixer, batching machine, silos, color, etc)




Product Features

  • 1. The belt feeding uses a conveyor belt to continuously and quickly load materials. The design is more complicated than the skip hoist type loading, but the loading and transportation efficiency is high, and it can quickly complete large-scale operation requirements and increase production efficiency by more than 20%;
  • 2. The belt feeding production cycle is short and the unloading volume is large, so it is suitable for commercial concrete batching plant;
  • 3. It can continuously provide materials, and the transmission distance is relatively large, which can well meet the needs of large batching plant;
  • 4. The tensioning device ensures that the conveyor belt has sufficient tension to ensure friction between the conveyor belt and the transmission roller so that the conveyor belt does not slip. At the same time, it can adjust the impact of changes in the length of the conveyor belt;
  • 5. The belt cover is mainly used to prevent dust and rain.
  • The belt-type concrete mixing plant has a series of characteristics such as high efficiency, stability, energy saving, and wide application. It is the best choice for commercial concrete batching plant.

Product Parameter

Model HZS60 HZS90 HZS120 HZS180 HZS240 HZS270
Capacity 60m3/h 90m3/h 120m3/h 180m3/h 240m3/h 270m3/h
Mixing system Twin-shaft concrete mixer
Aggregate feeder Incline belt conveyor
Discharging height 4200mm
After-sale service Erection & commissioning, operator training
Warranty 18 months
Concrete mixer JS1000 JS1500 JS2000 JS3000 JS4000 JS4500
Mixing cycle ≤60s
Aggregate batching machine 4 x 8m3 4 x 12m3 4 x 20m3 4 x 25m3 4 x 25m3 4 x 25m3
Weighing system Water, Cement, Fly-Ash, Additive
Weighing precision ±1%
Air system Air compressor, etc
Control system Type Computer auto-control module ( PLC can be optional item)
Control panel board Buttons, lamps, indicators, CCTV, etc
Electric components China CHNT, SCHNEIDER
Control room With Air conditioner and chair
Documentation Foundation layout, Electrical diagram, Operation manual
Optional Items
Screw conveyor diameter & length Ø219mm/273mm, L=8000mm/9000mm
Cement silo capacity 50t/100t/150t/200t/300t/500t
Outer plant pack except aggregate bins With main frame duct collector

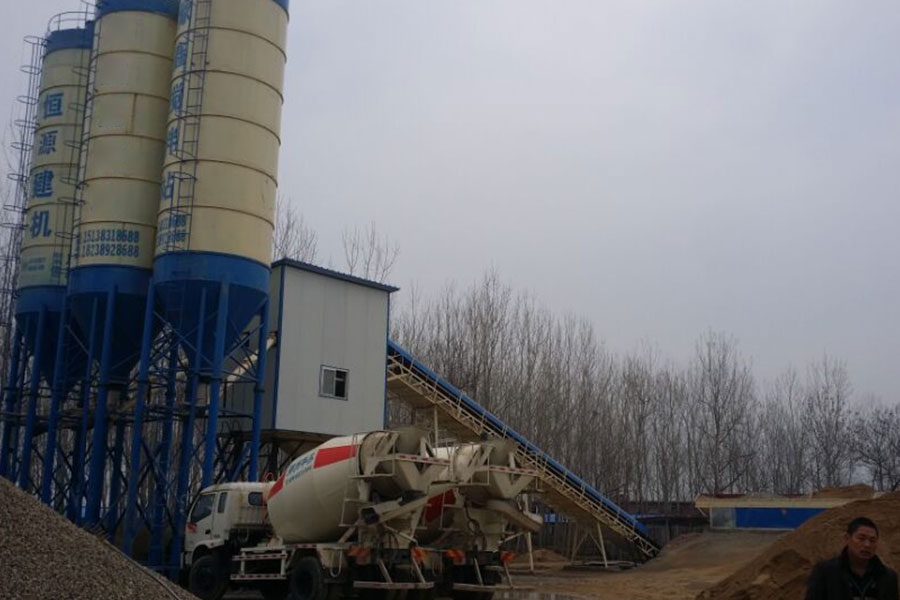

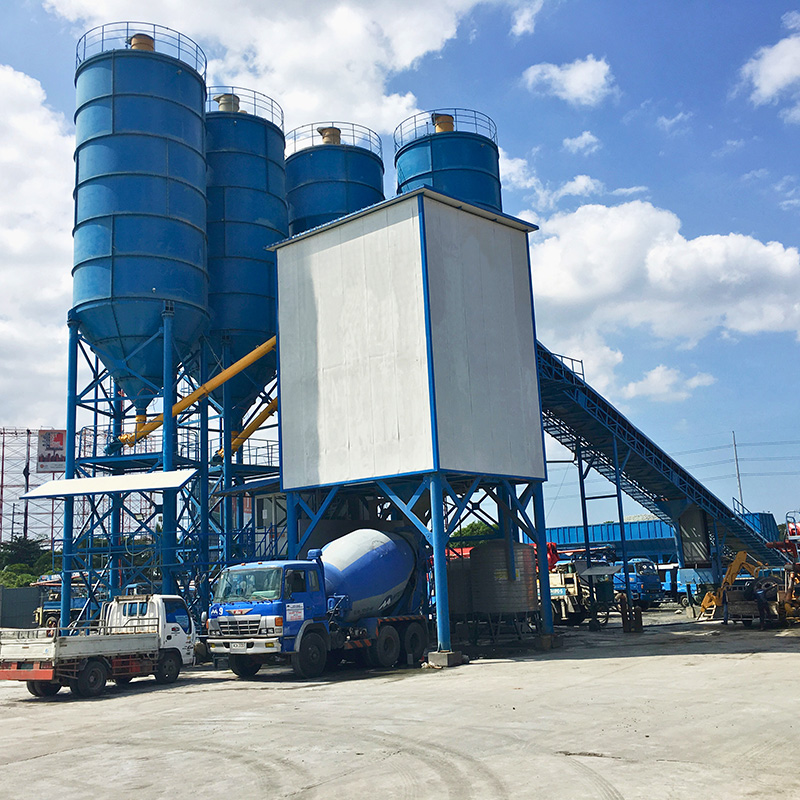

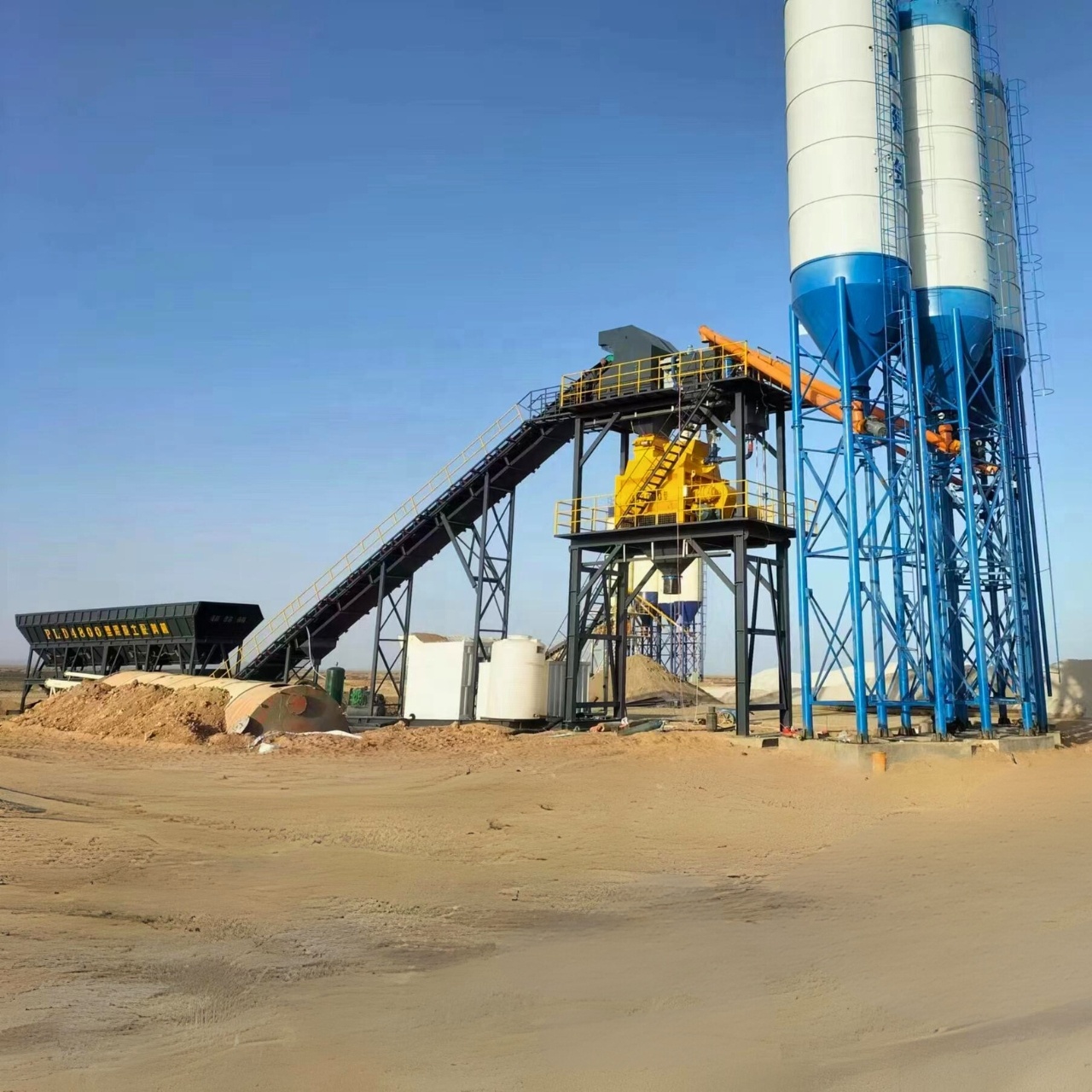

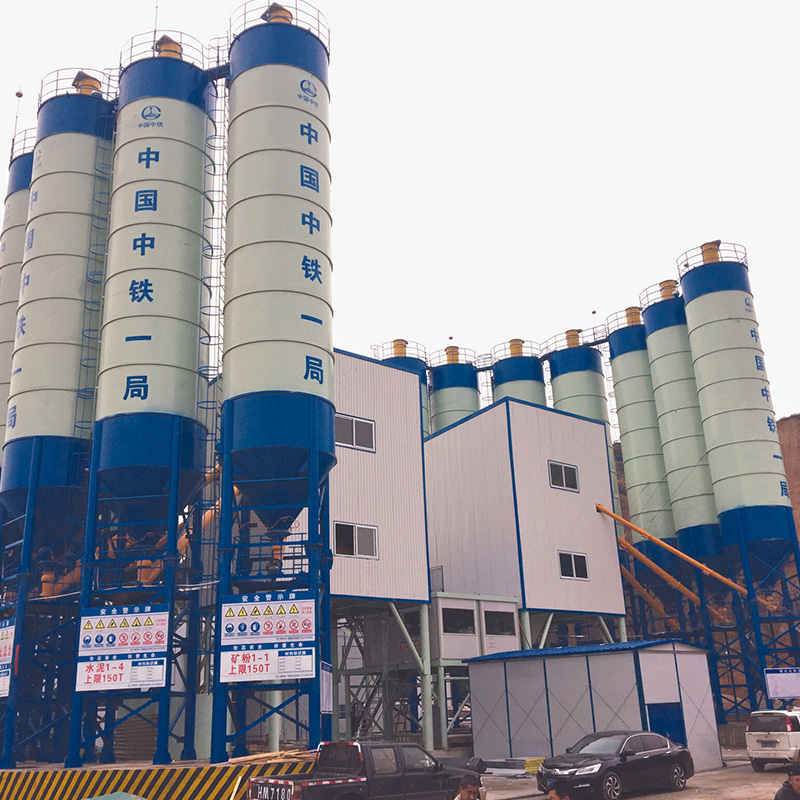

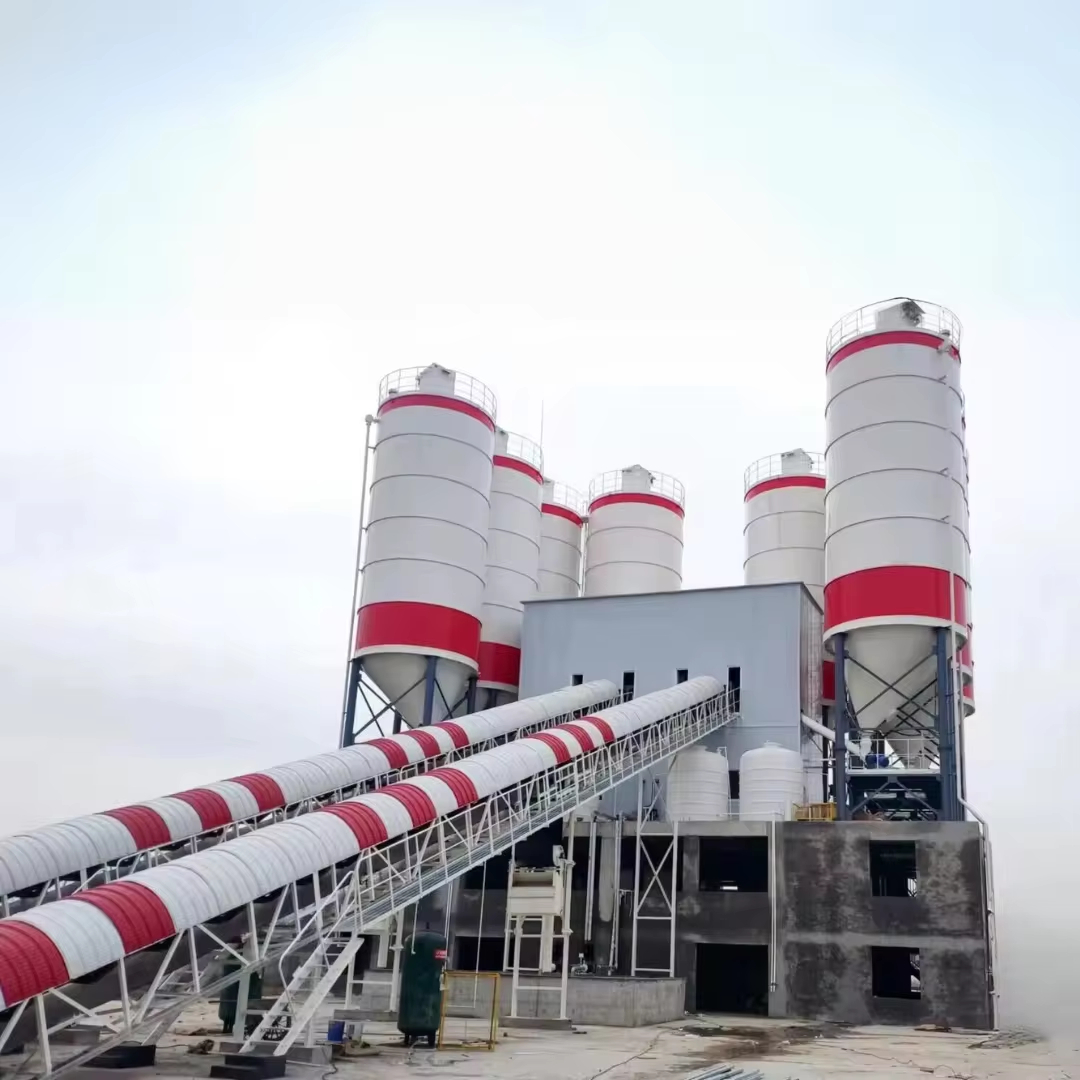

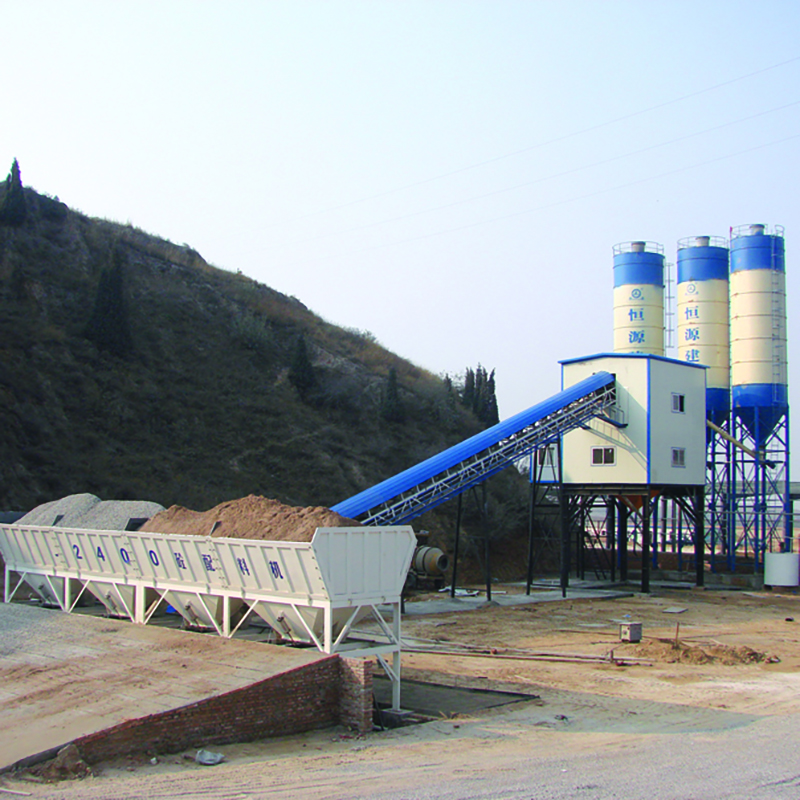

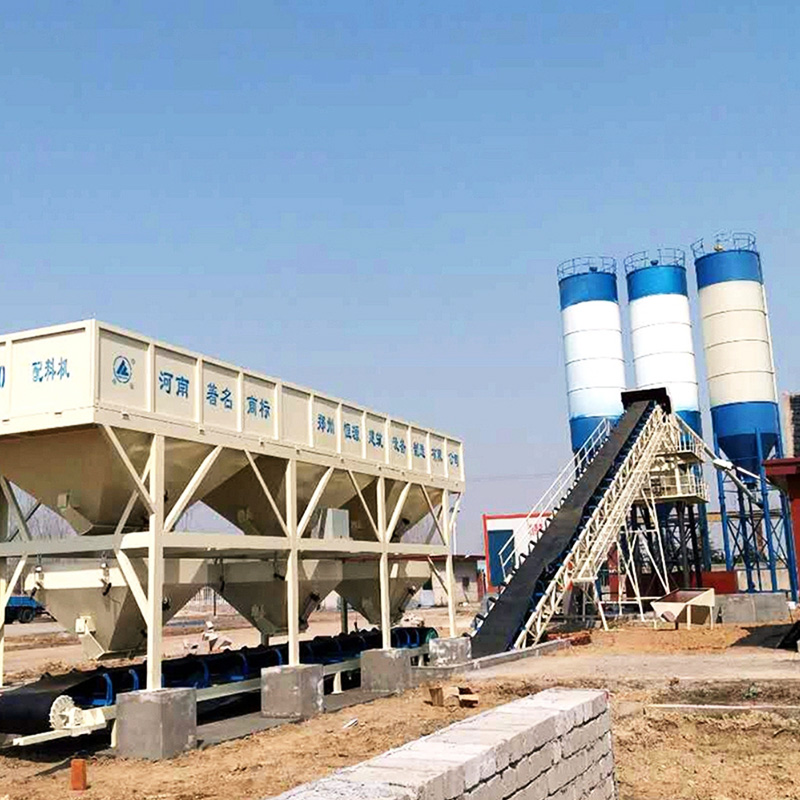

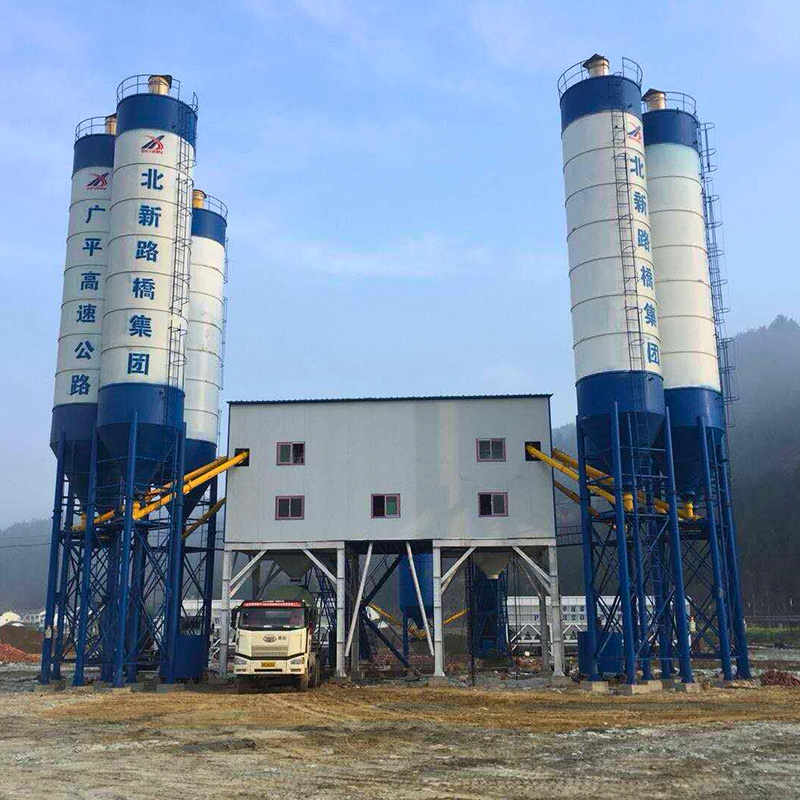

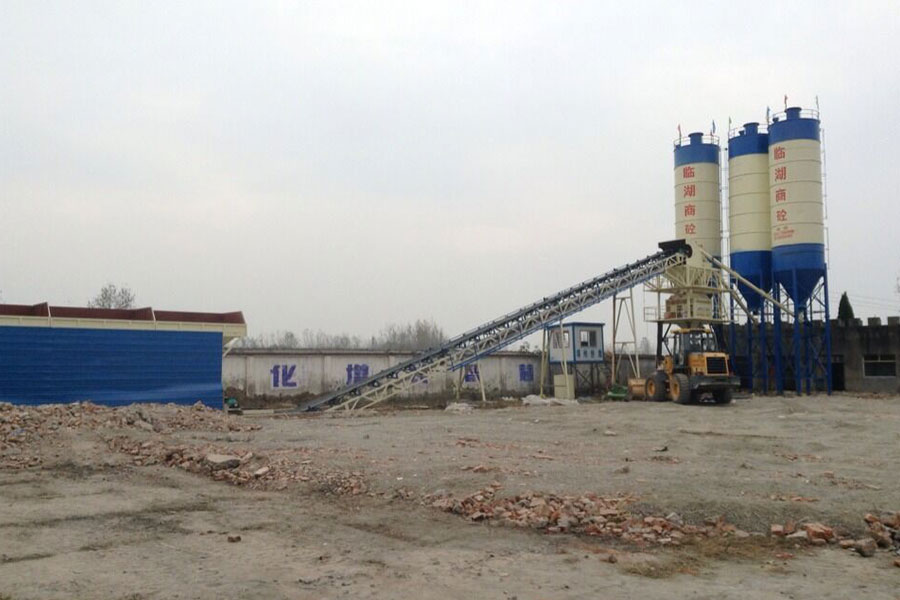

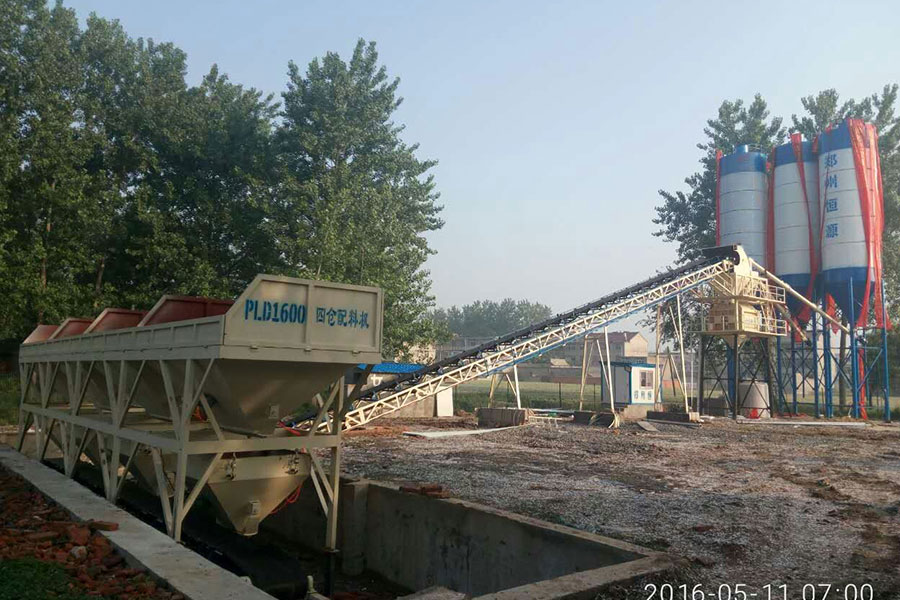

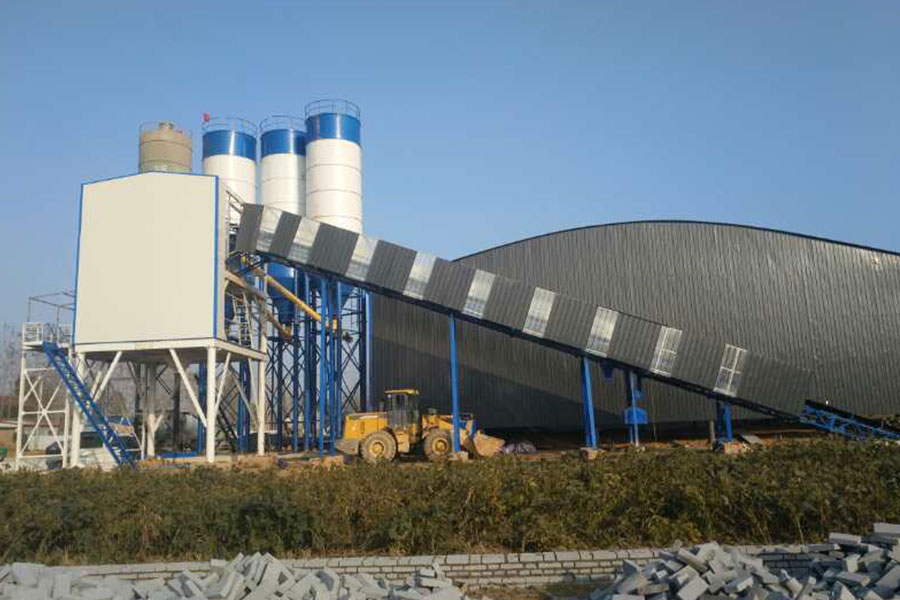

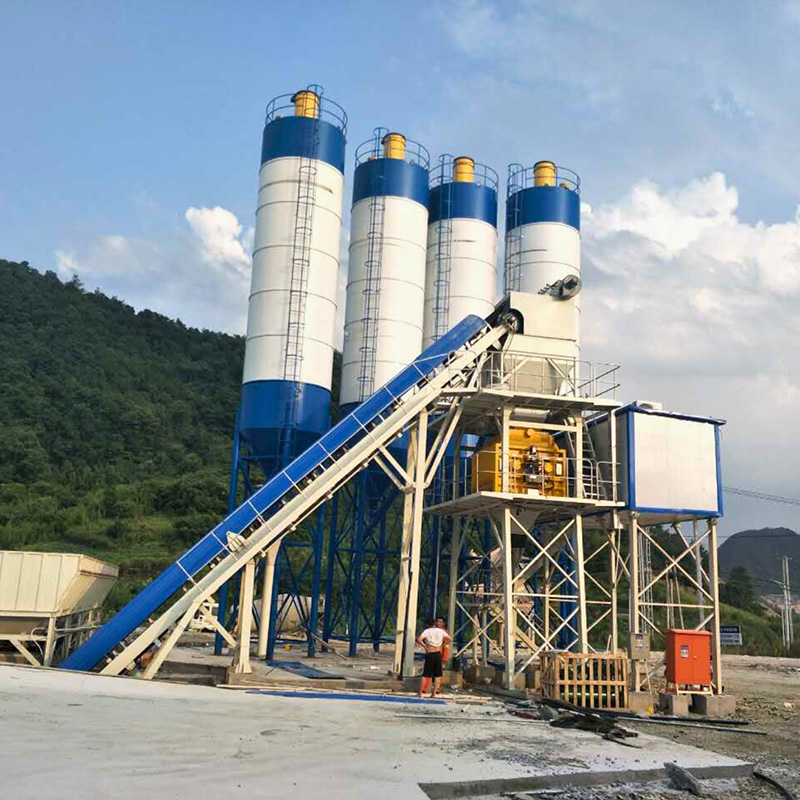

Projects Display
