Skip Hoist Concrete Plant

The concrete batching plant is a concrete production facility with a high degree of mechanization and automation. It uses precise weighing and mixing technology to ensure the quality of concrete production.

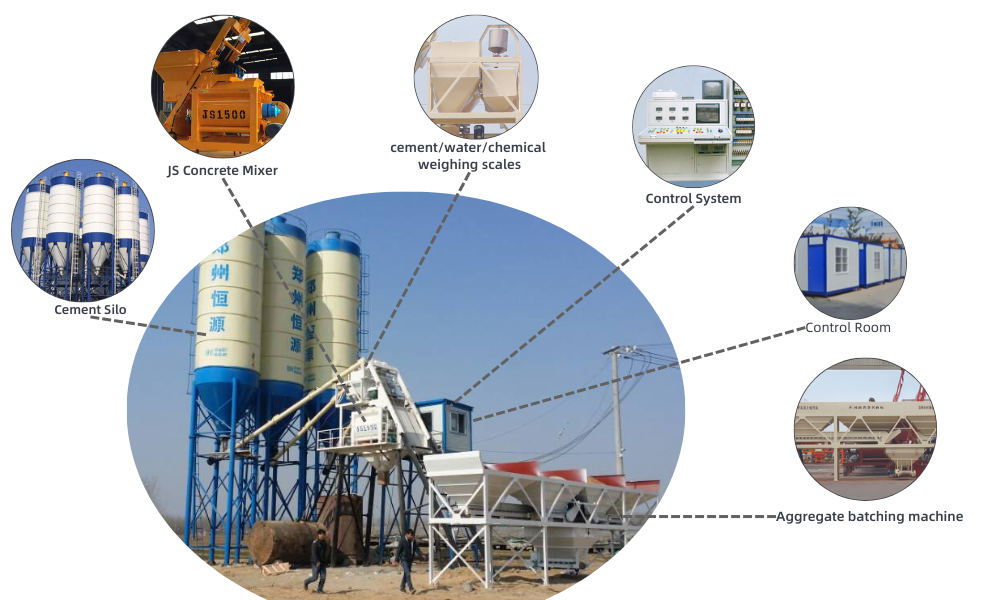

HZS skip hoist hopper type concrete batching plant consists of aggregate / fly ash / cement / additive / water weighing system, mixing system and automatic control system etc, they are widely used in small and medium construction projects, road, bridge project, and concrete precast factory.

Capacity : 25-100m³/h


Product Details

  • 1. Full automatic control system, PLC with SIEMENS brand, Main electric components with Schneider/CHNT brand.
  • 2. Control panel & system language can be cutomized.
  • 3. Mixing system selection JS/SICOMA twin shaft concrete mixer or planetary mixer, high efficiency, high mixing quality.
  • 4. Aggregate batching machine loading height is cutomized ( 0-5m).
  • 5. Control room with heat-resistant material and Midea/Gree air conditioner.
  • 6. Quick Installastion and Convenient for maintenance .
  • 7. Cement silos special design for shipping ( 4sets/40HQ )
  • 8. 18 months warranty.
  • 9. Whole design can be customized ( mixer, batching machine, silos, color, etc)

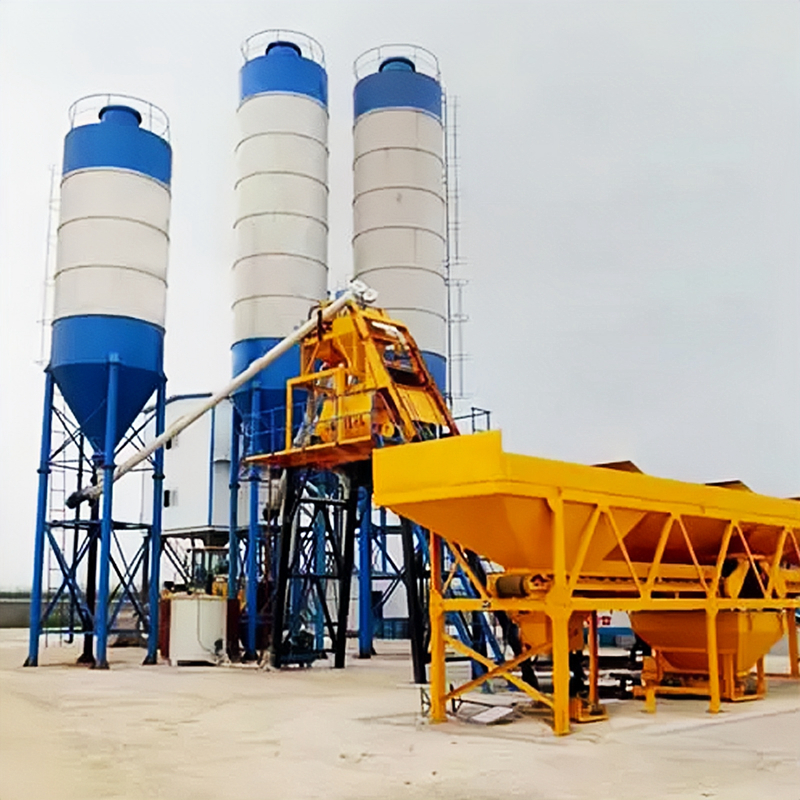

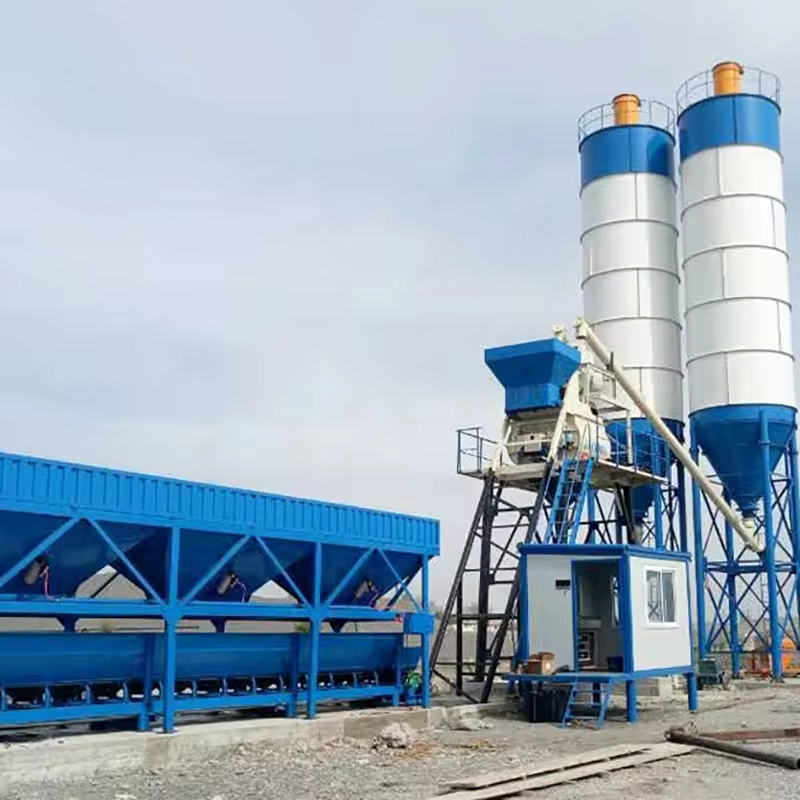

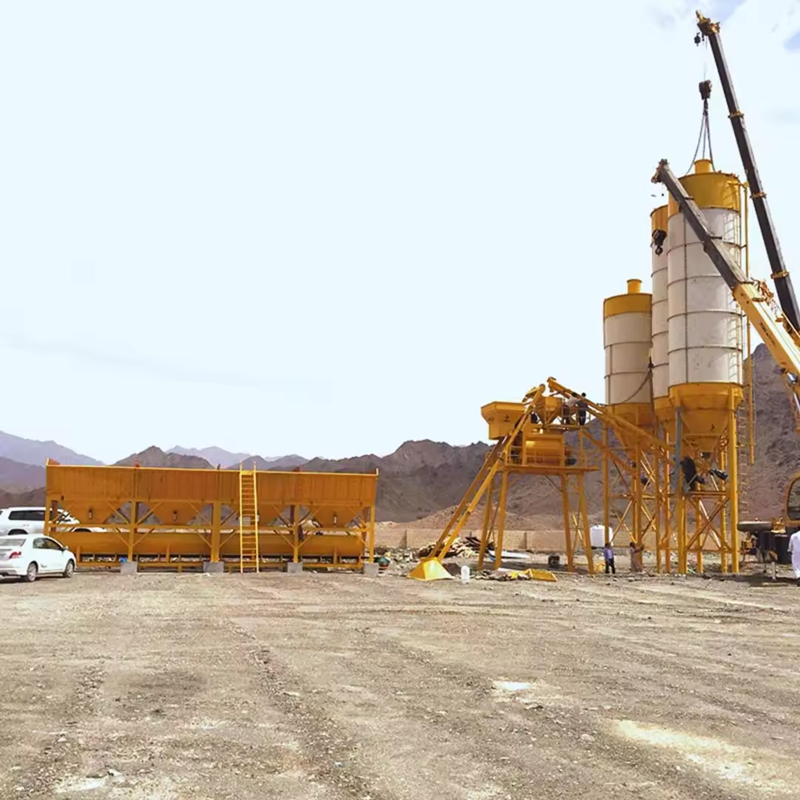

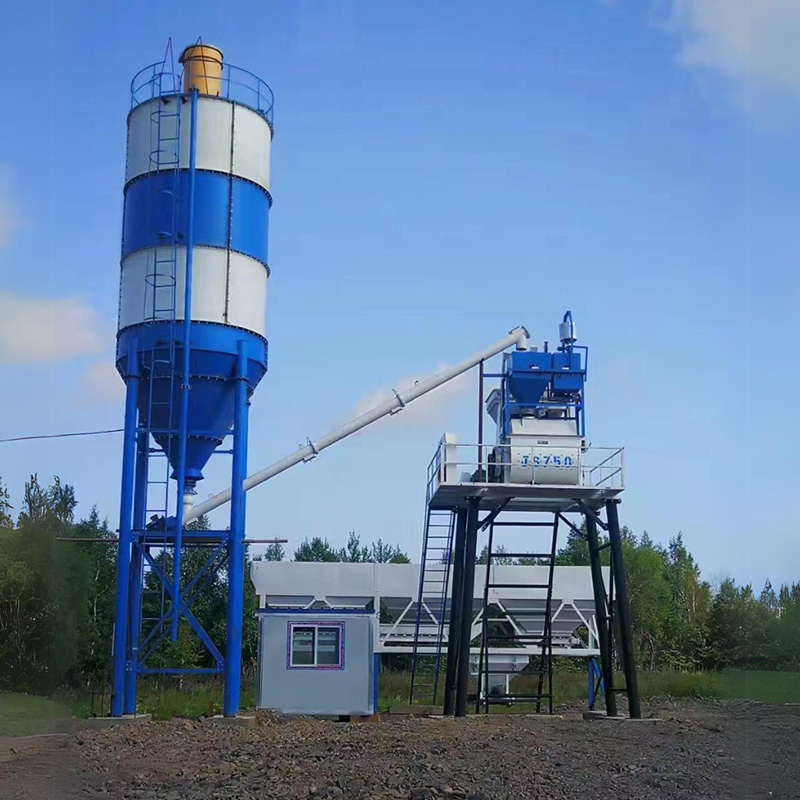

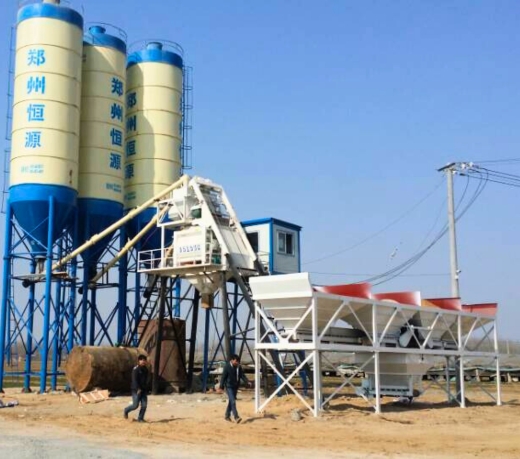

skip hoist batching plant



Product Features

  • 1. Full automatic control system, smart and automatic
  • 2. Structural are durable.
  • 3. Mixing system selection JS/SICOMA twin shaft concrete mixer, high efficiency, high mixing quality.
  • 4. Computer plus PLC control system to ensure smart and stable operation, dynamic panel display can make the operator clearly and easy understanding
  • 5. Convenient for maintenance .
  • 6. 18 months warranty
  • 7. Whole batching plant can be customized ( mixer, batching machine, silos, color, etc)

Product Parameter

Model HZS25 HZS35 HZS50 HZS75 HZS100
Capacity 25m3/h 35m3/h 50m3/h 75m3/h 100m3/h
Mixing system Twin-shaft concrete mixer
Aggregate feeder Bucket ( Skip hopper )
Discharging height 3800-4000mm
After-sale service Erection & commissioning, operator training
Warranty 18 months
Concrete mixer JS500 JS750 JS1000 JS1500 JS2000
Mixing cycle 72S
Aggregate batching machine PLD800 PLD1200 PLD1600 PLD2400 PLD3200
Weighing system Water, Cement, Additive
Weighing precision ±1%
Air system Air compressor, etc
Control system Type Computer auto-control module ( PLC can be optional item)
Control panel board Buttons, lamps, indicators, etc
Electric components China CHINT, German SCHNEIDER (option)
Control room With Air conditioner
Documentation Foundation layout, Electrical diagram, Operation manual
Optional Items
Screw conveyor diameter & length Ø219mm/273mm, L=8000mm/9000mm
Cement silo capacity 50t/100t/150t/200t/300t/500t

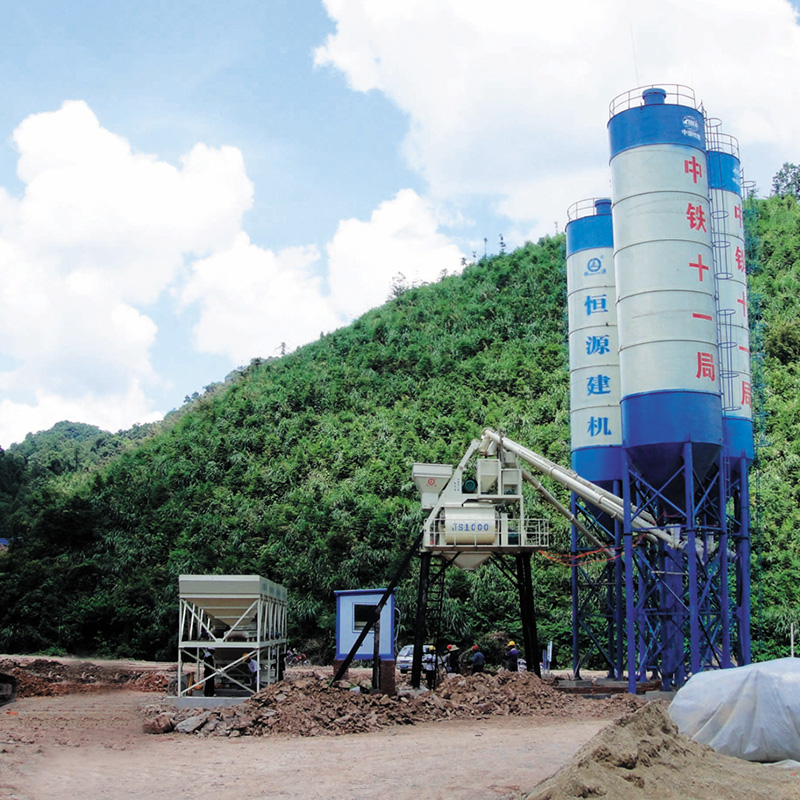

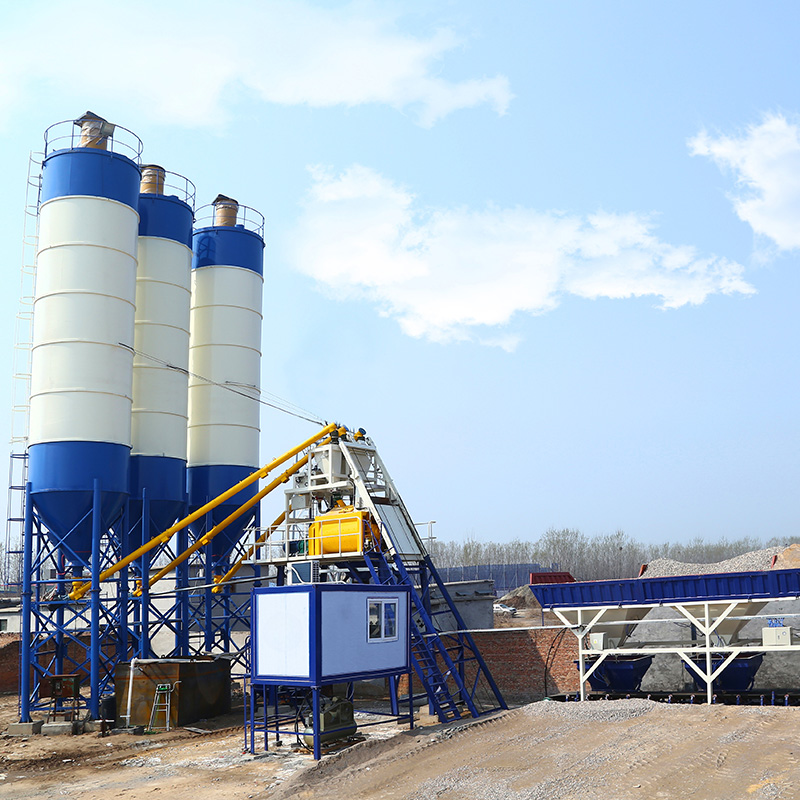

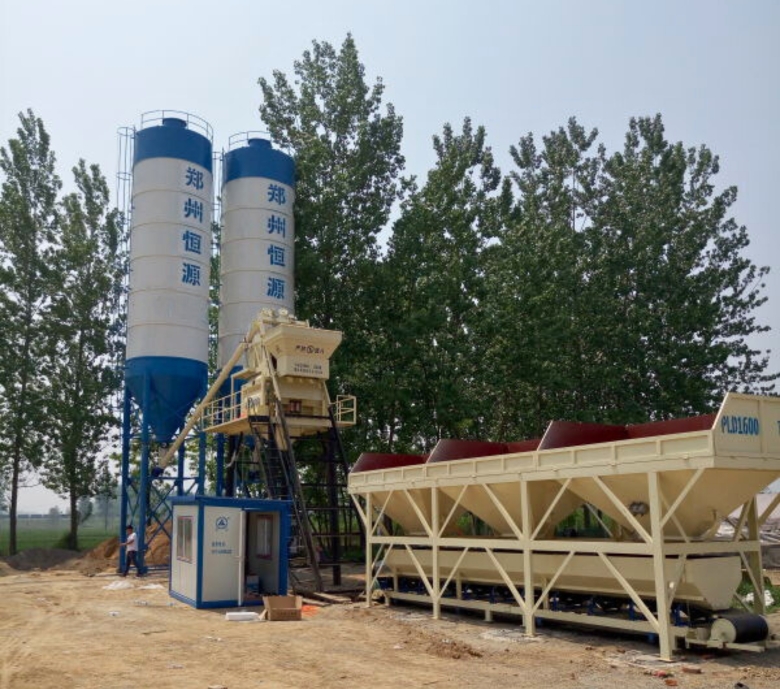

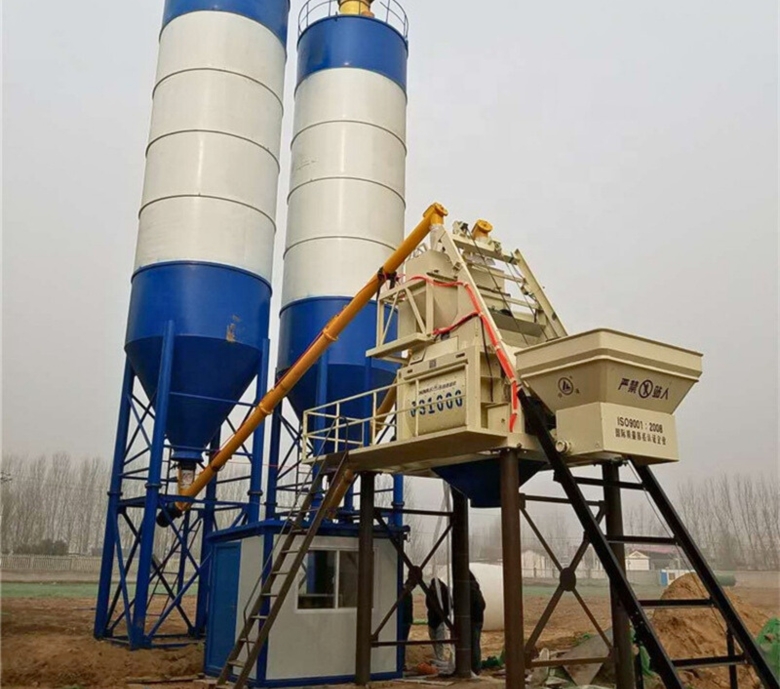

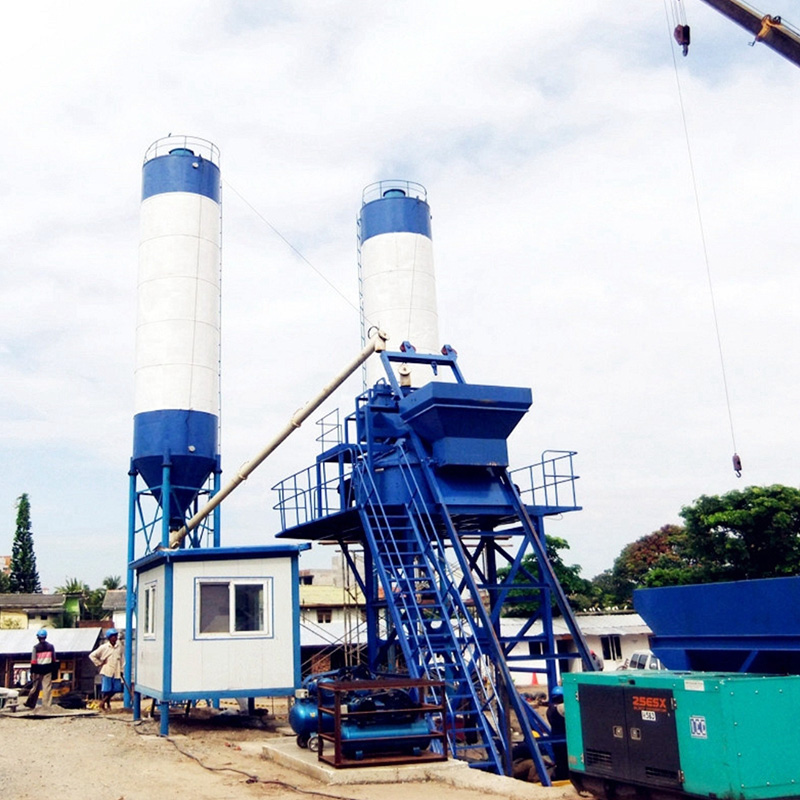

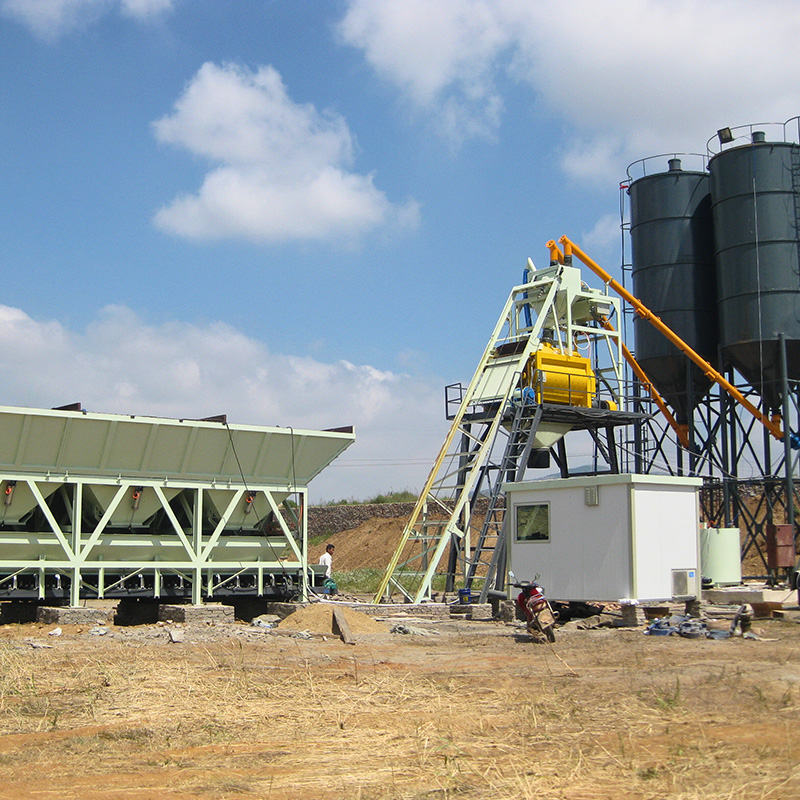

Product Display
