With-Foundation Concrete Plant

The concrete batching plant is a concrete production facility with a high degree of mechanization and automation. It uses precise weighing and mixing technology to ensure the quality of concrete production.

FHZS series foundation free concrete batching plant is a new type mixing plant that adapts to rapid installation and doesn’t need to lay foundation.

It is our factory root according to the actual project design and manufacture. The whole design is easy to install, stable and reliable operation, convenient transportation.

It has the advantages of quick and convenient disassembly and stable performance. It is the ideal choice for railway, highway, port, bridge, hydro-power project and other site construction projects.

Capacity : 60-180m³/h


Product Features

  • 1. Fast and simple disassembly and installation, the batching plant can work steady without foundations.
  • 2. Excellent mixing performance, the use of double twin shaft mixer, can make the concrete in a short time to mix average, can mix a variety of formulas of concrete, such as dry, semi-dry, plastic concrete, etc
  • 3. The whole station has high configuration, stable quality, accurate measurement and simple operation. Mixer reducer, weighing sensor and control system electronic components are made of high brand products to reduce failure rate, improve batching accuracy and mixing quality
  • 4. Whole batching plant can be customized ( mixer, batching machine, silos, color, etc)

Product Parameter

Model FHZS60 FHZS90 FHZS120 FHZS180
Capacity 60m3/h 90m3/h 120m3/h 180m3/h
Mixer Twin shaft concrete mixer
Aggregate feeder Belt feeding
Discharge height 4m
After sales service Erection & commissioning, operator training
warranty 18 months
Concrete mixer JS1000 JS1500 JS2000 JS3000
Mixing time 30S
Batching machine PLD1600 PLD2400 PLD3200 PLD4800
Weighing system Water / cement / additive / flyash
Weighing precision ±1%
Air system Air compressor and accessories, etc
Control system Fully automatic control
Control room Insulation type with air conditioner
Electric components China CHINT,  SCHNEIDER
Optional items
Screw conveyor diameter &length Φ=219mm/273mm, L=8-14m
Cement silo capacity 50t/100t/150t/200t/300t/500t

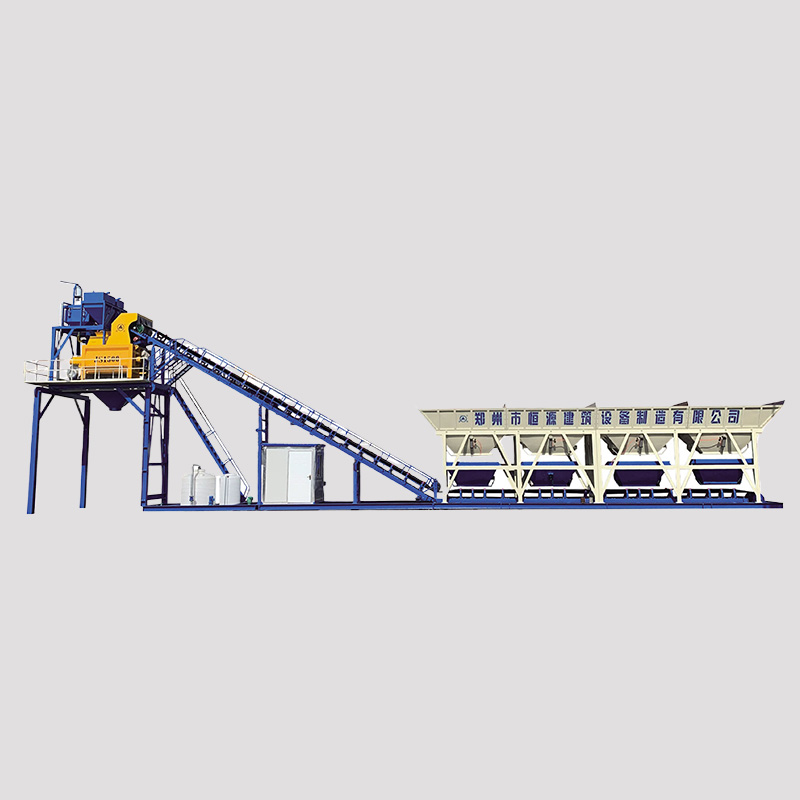

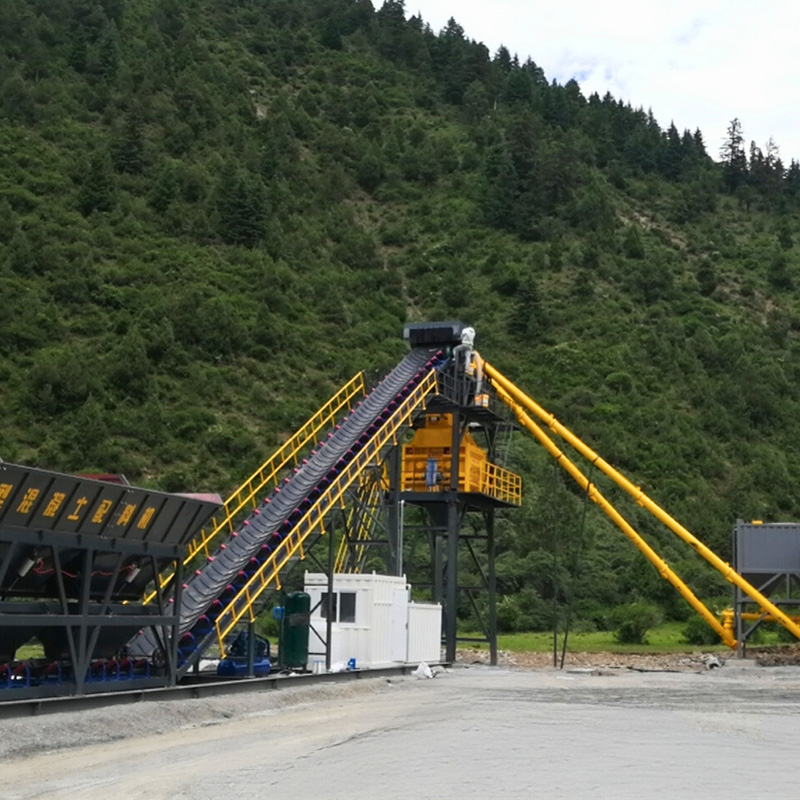

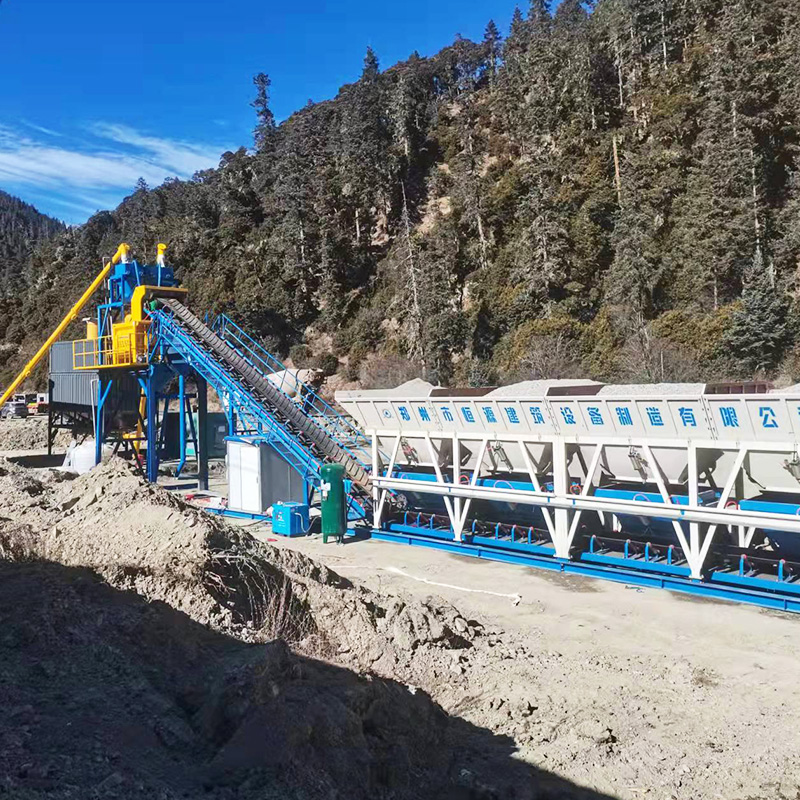

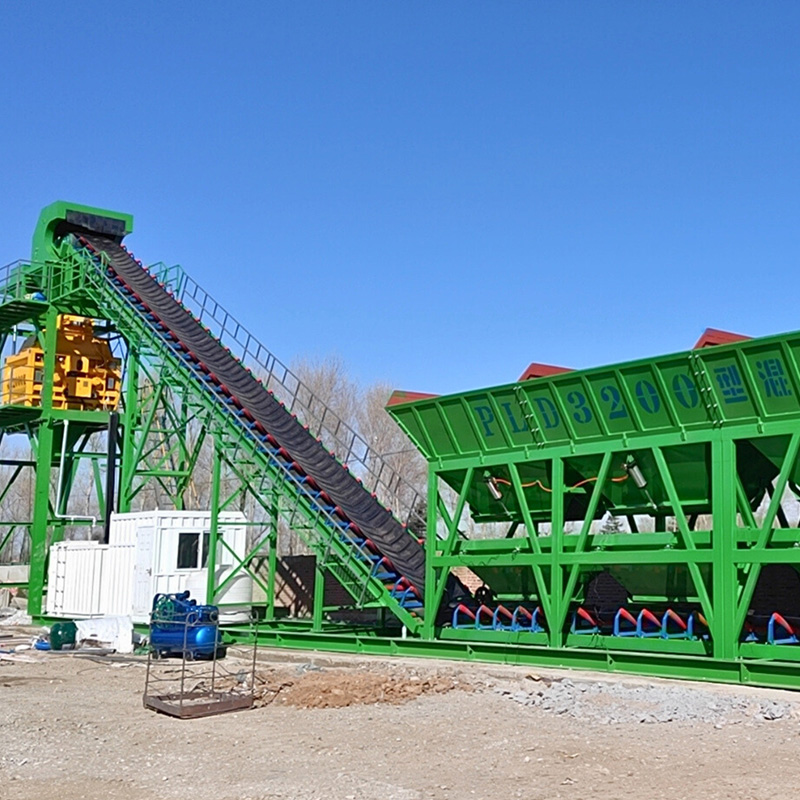

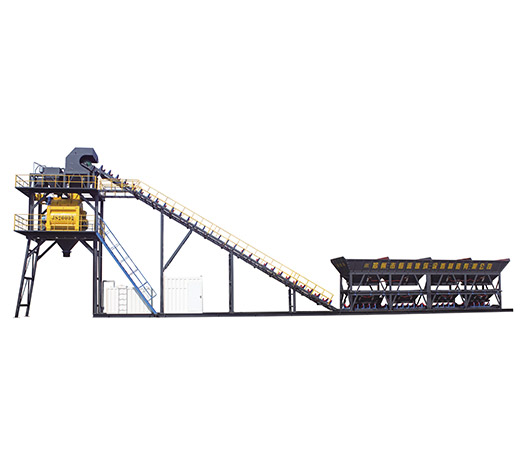

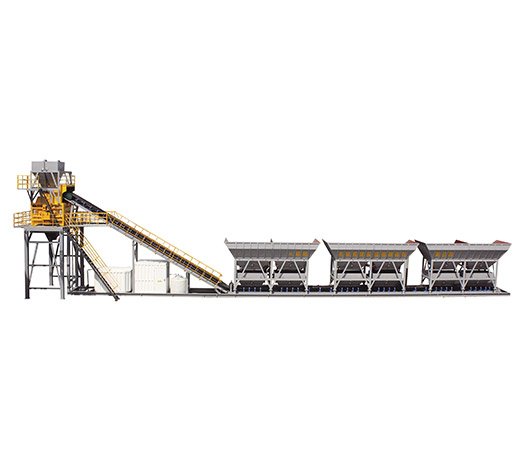

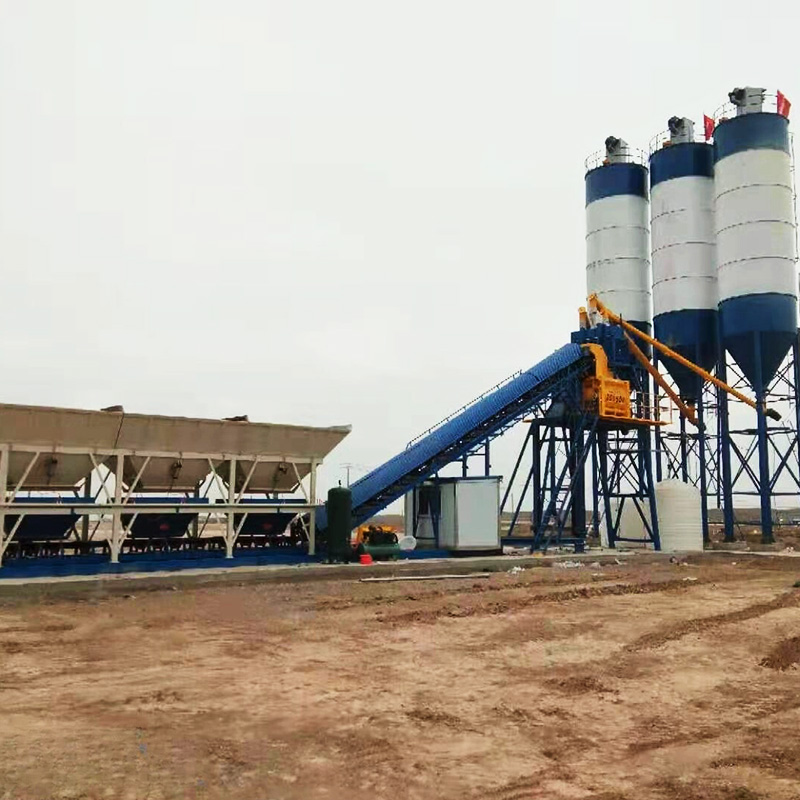

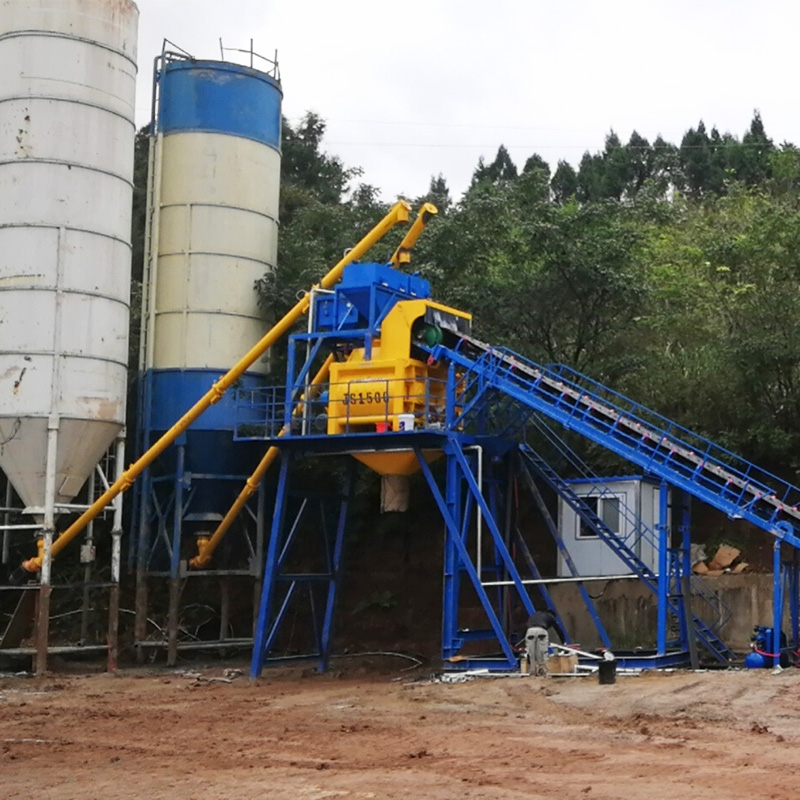

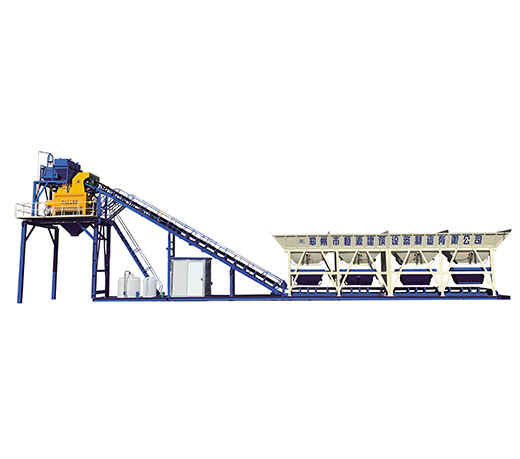

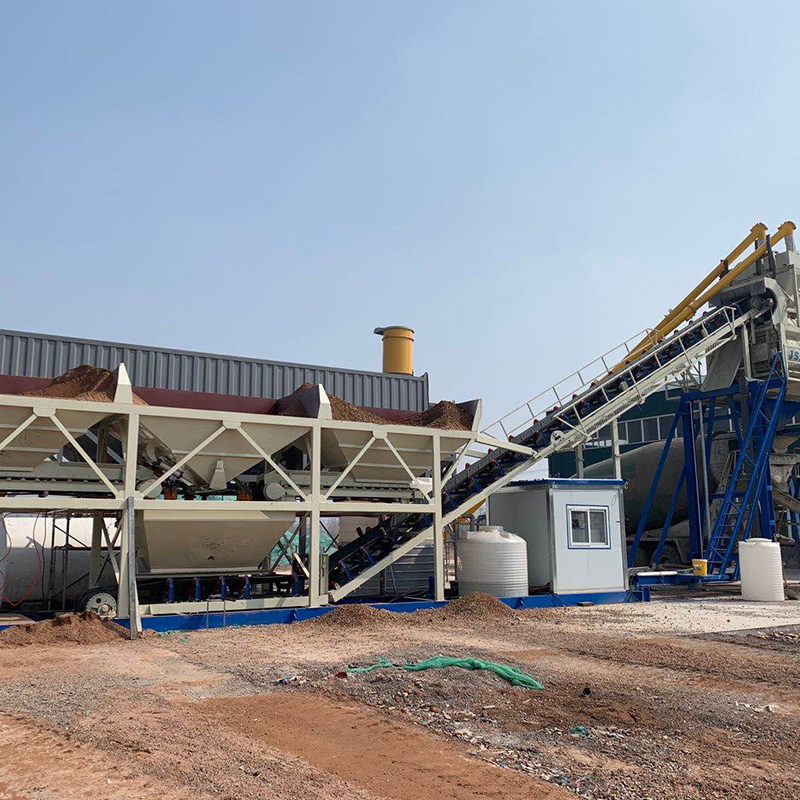

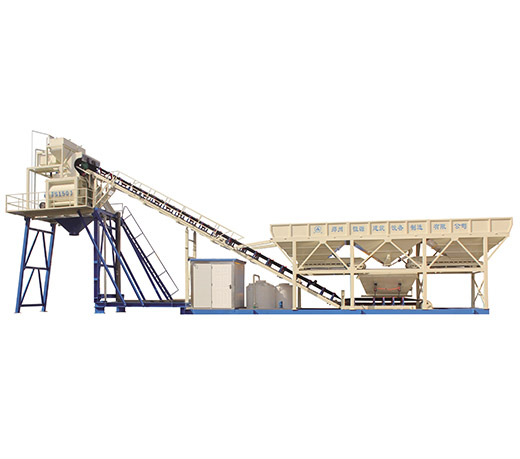

Product Display
