Diesel Concrete Pump

The Concrete Pumps are concrete transport machines, which are widely used for the construction works in city construction, bridge construction, electric power and other energy source facilities and so on.

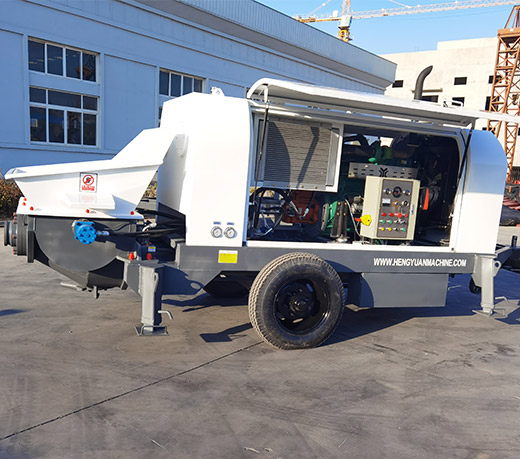

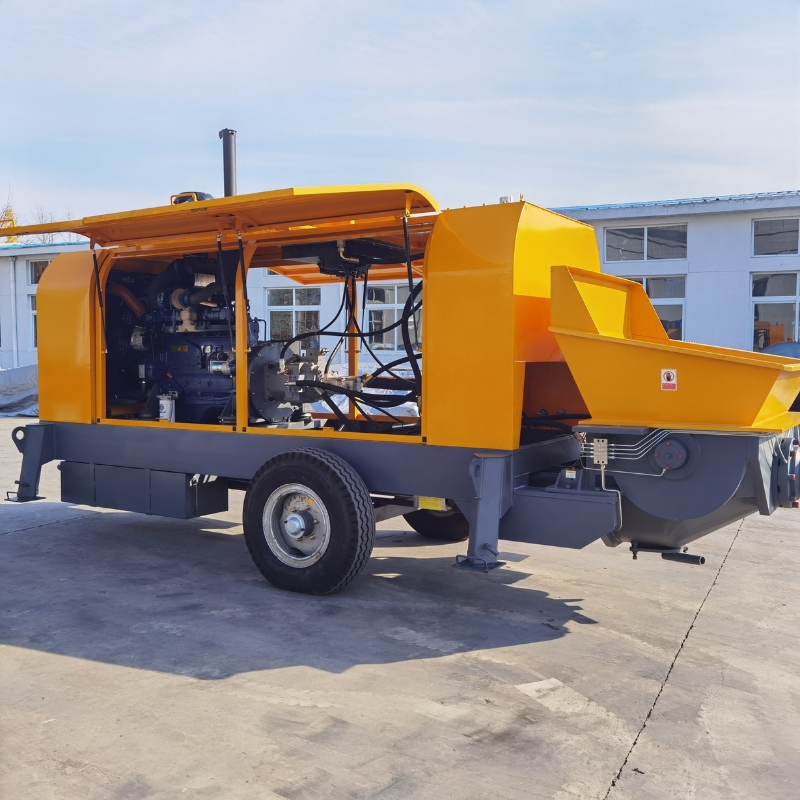

Diesel engine type trailer-mounted concrete pumps are suitable for projects with power shortages and difficult conditions. However, diesel trailer pumps emit certain pollutants.

Capacity : 40-90m³/h

Send Message Inquiry Now

Features

Product Details

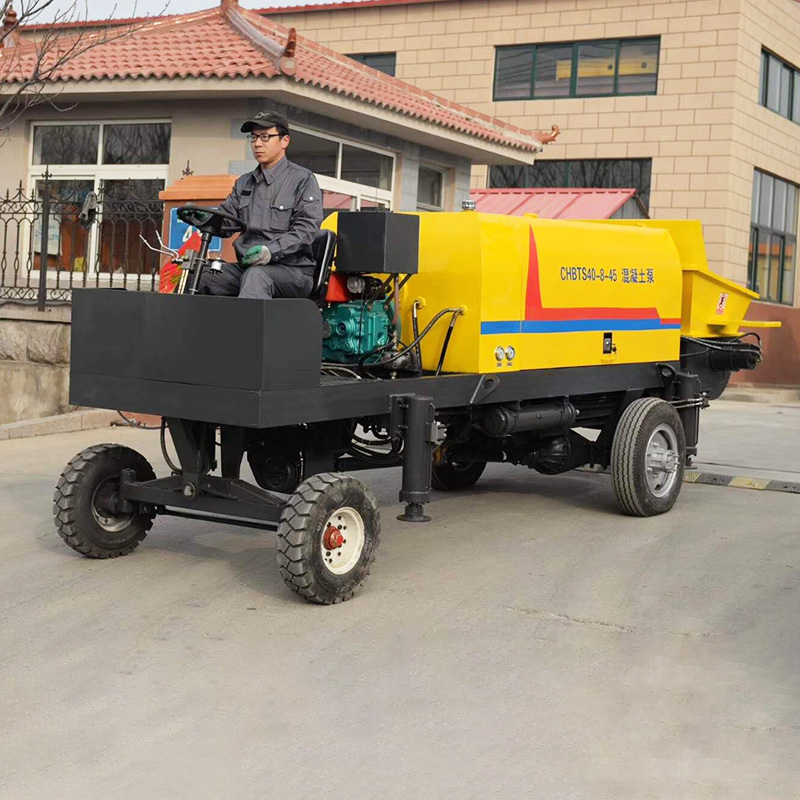

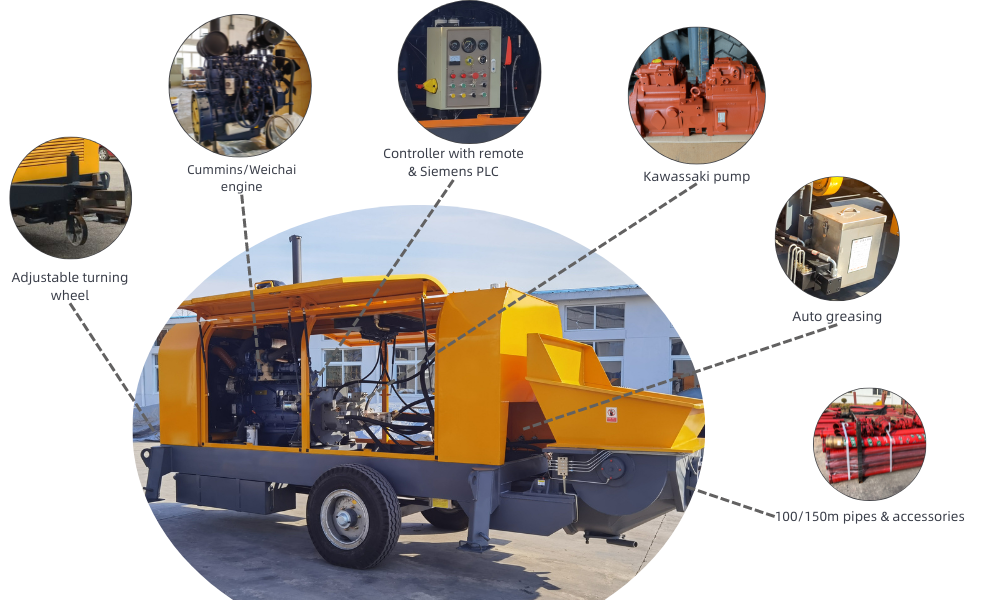

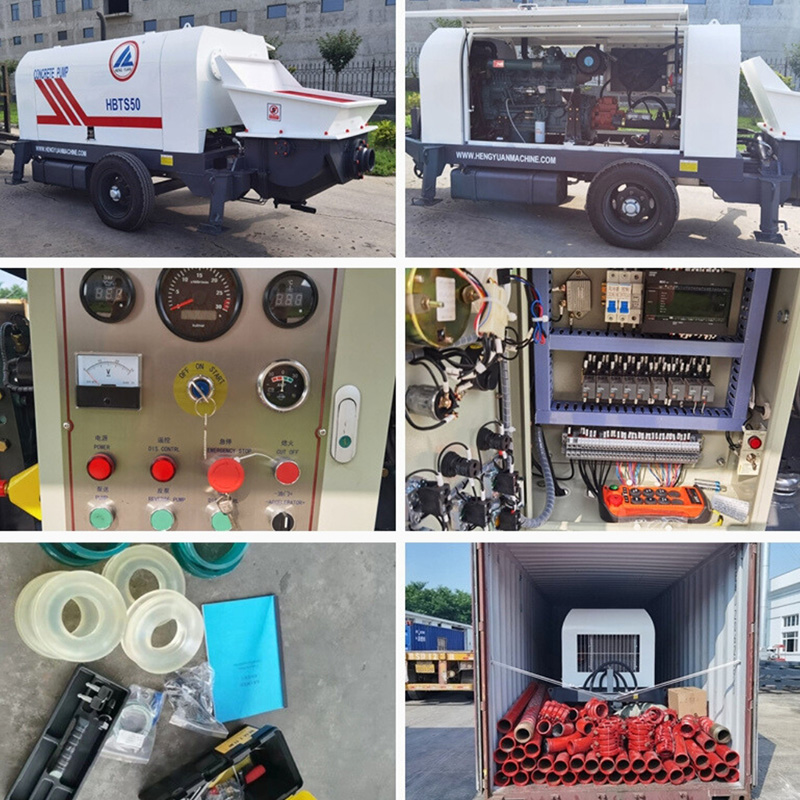

1. Adjustable turning wheel help the workers moving easily on site.

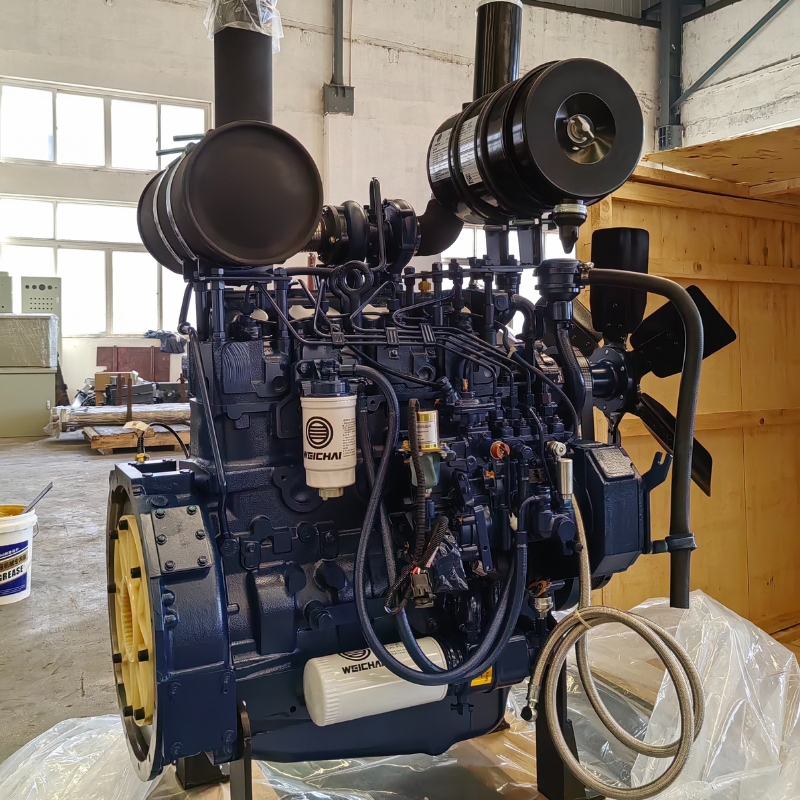

2. The diesel engine adopt to Cummins/Weichai-Deutz/Weifang brand, which is famous brand in the world.
3. Control system with local & remote control, Siemens/Omron PLC, Schneider/CHNT electric components.
4. The main hydraulic pump adopt to Kawassaki brand.
5. Auto greasing to ensure the concrete pump with low maintenance.

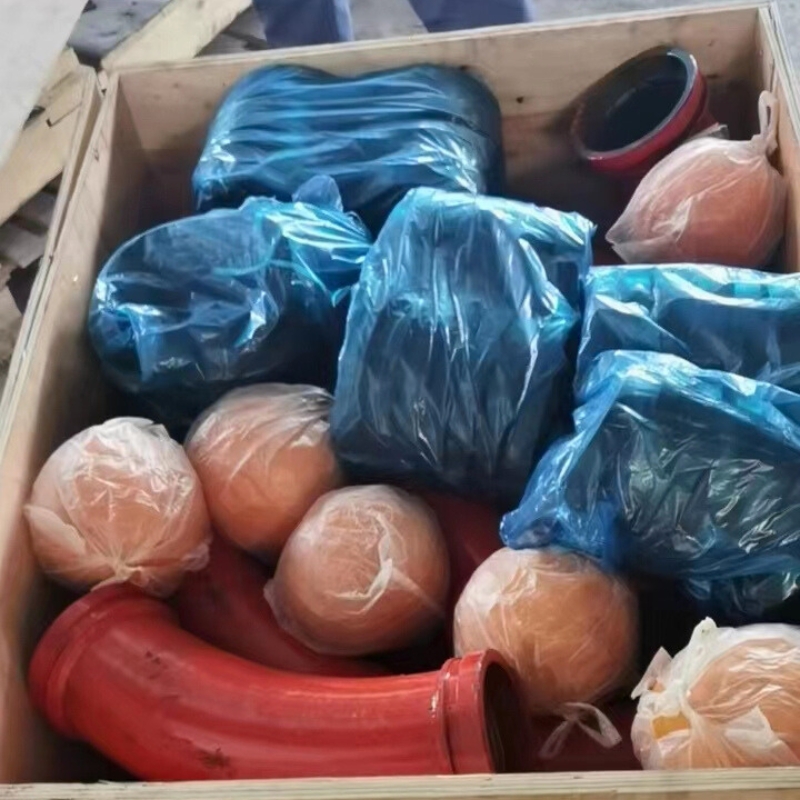

6. Each concrete pump include 100/150m concrete pipes and accessories (clamps, rubbers, cleaning balls, etc.)

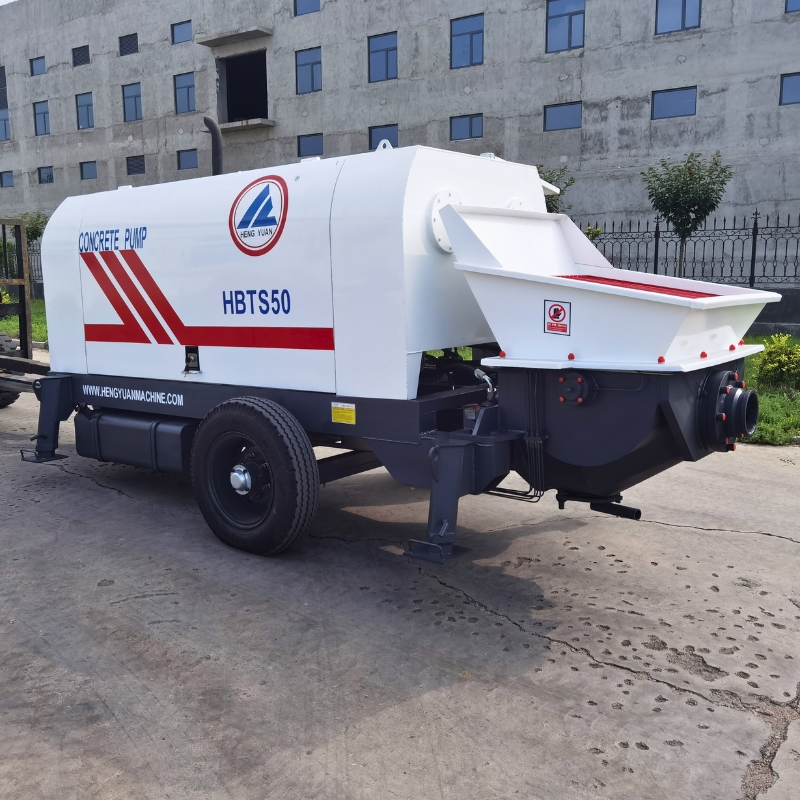

HBTS concrete pump

Product Features

1. High eﬃcient hydraulic system with new high-speed commutation mode, which makes the pump commutation eﬃciency increase 12%.
2. Large displacement pumping system makes the suction eﬃciency increase by 6%, to meet the needs of a variety of working conditions.
3. Overall hydraulic reversing open system has the advantage of high cleanness of hydraulic oil, low oil temperature and small impact on commutation.
4. Advanced S tube valve enjoys the advantages of good sealing, while quick-wear parts are economic and durable, easy to replace.
5. Hydraulic and electrical main components use internationally renowned brands with high reliability.
6. All the motors and diesel engine are famous brand, Weichai, Cummins, etc.
7. 18months warranty and after-sales system, which can better solve the clients’ worries.

Product Parameter

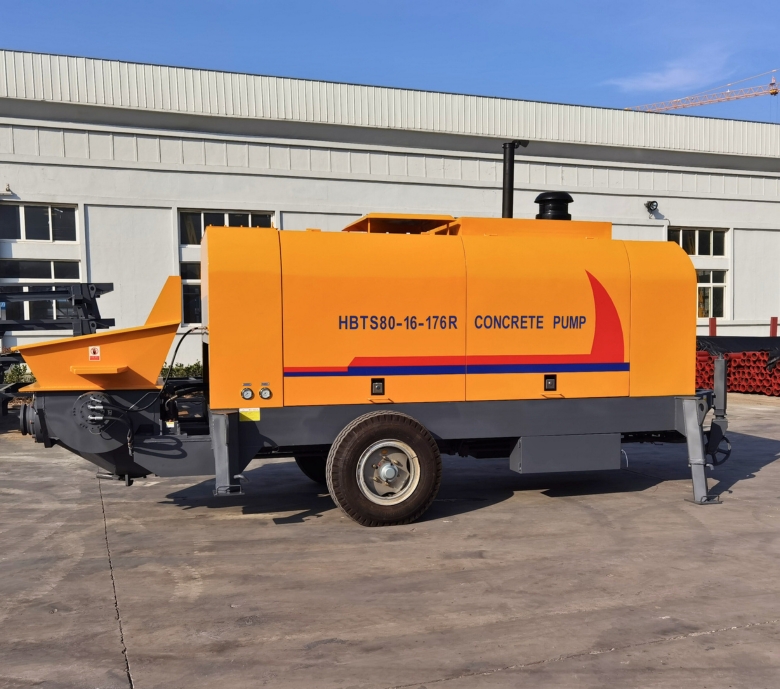

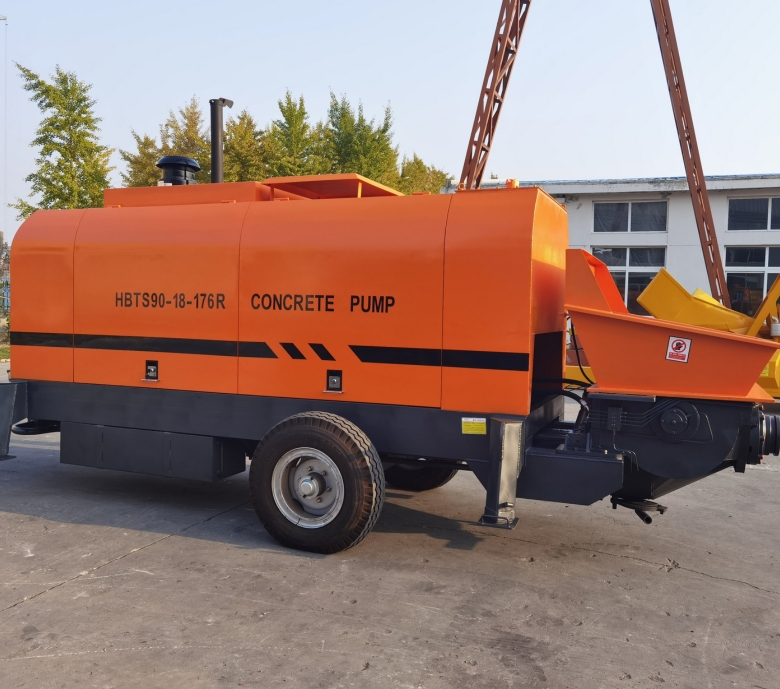

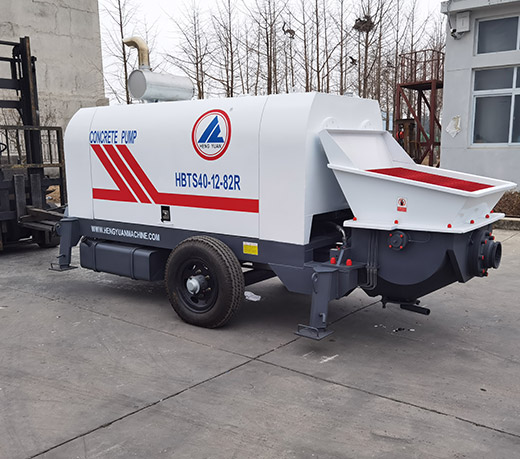

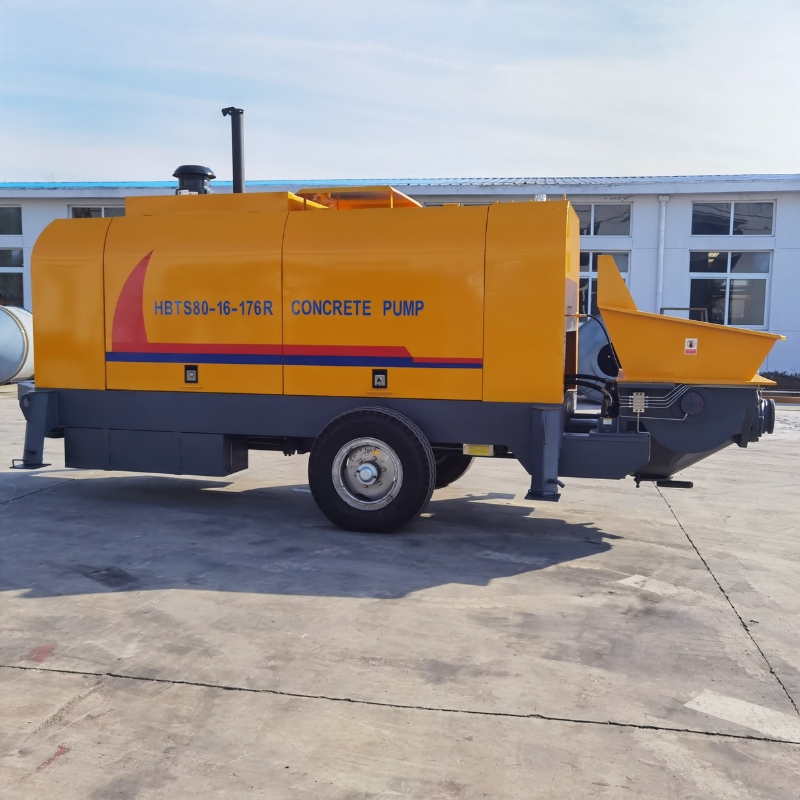

Model			HBTS40	HBTS50	HBTS60	HBTS80	HBTS90
Max. Theoretic capacity		m³/h	40	50	60/46	85/50	90/55
Max, Theoretic pressure		Mpa	10	12	13/6.3	15.7/8.6	18/9.3
Motor/Diesel engine power		kw	66	82	129	176	176
Max. Theoretic distance	Vertical	m	120	150	200	250	300
Max. Theoretic distance	Horizontal	m	250	300	500	800	1000
Disribution valve type		--	S valve
Hydraulic oil circuit type		--	Open Circuit
Specification of concrete cylinder		mm	Ø160x1000	Ø180x1200	Ø200x1800	Ø200x1800	Ø200x1800
Specification of main oil cylinder		mm	Ø100x1000	Ø125x1200	Ø140x1800	Ø140x1800	Ø140x1800
Oil tank capacity		L	300	300	420	420	580
Hopper capacity		L	600	600	600	600	800
Max. Aggregate diameter		mm	Slick scree: 40		Slick scree: 50
Max. Aggregate diameter		mm	Scree: 30		Scree: 40
Dimension (LxWxH)		mm	4500×1750×1600	4800×1800×1650	5800×2000×1750	5800×2000×1800	6000×2000×1800
Overall weight		kg	3500	3800	5800	6500	6800
pulling speed		km/h	≤8
