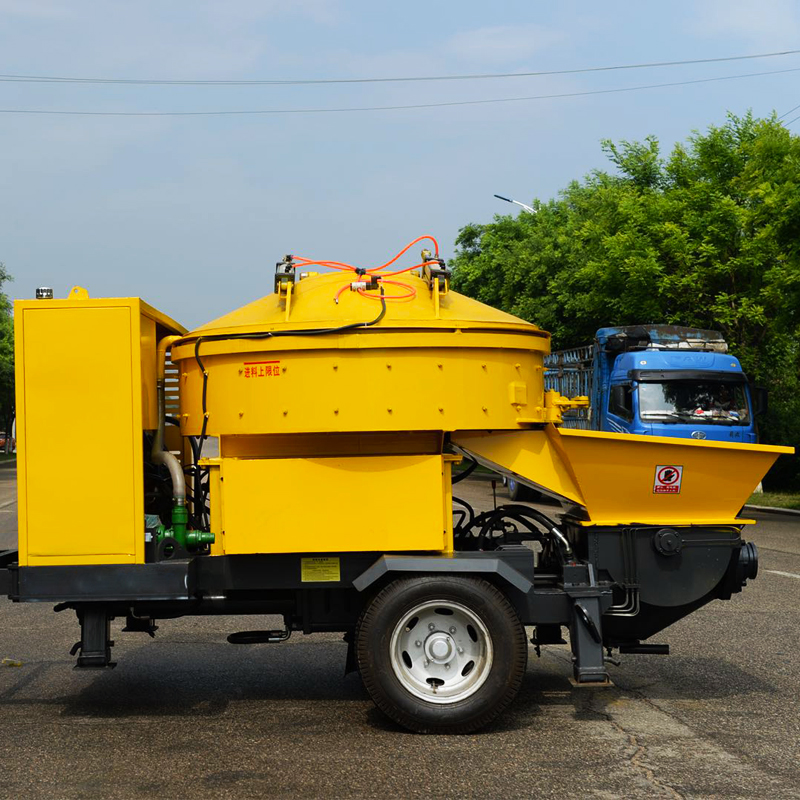

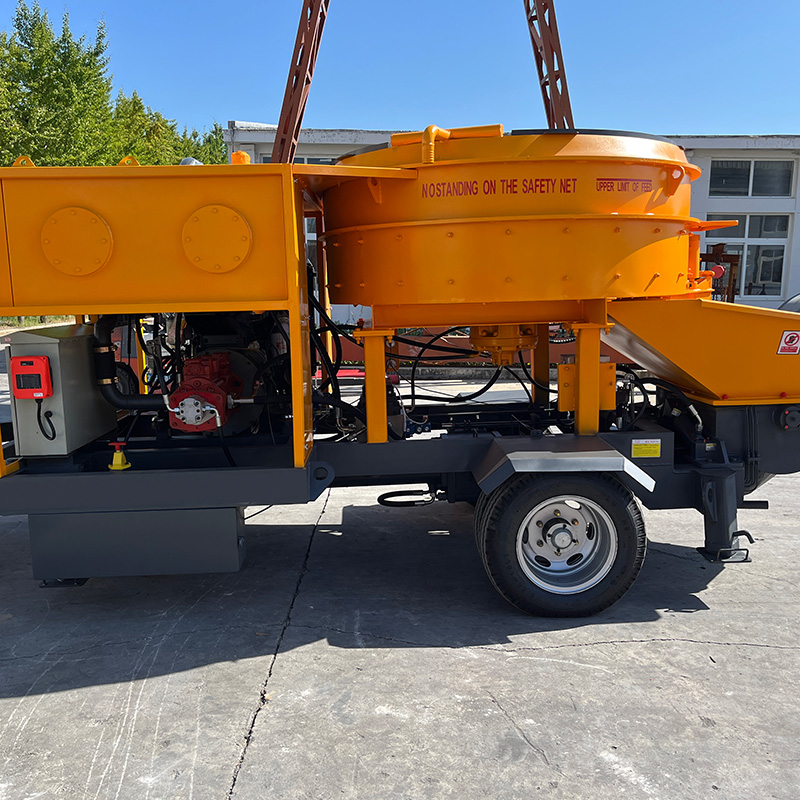

The Concrete pump with different types of concrete mixer is designed for customers’ request. It uses fully hydraulic pumping system and is characterized by large concrete filling quantity and stable performance as well as smaller volume and smaller operating space. This equipment is applicable to medium and small size house constructions ranging from 2 floors to 12 floors as well as other various projects such as mine caves, road and railway tunnels, water conservation and hydro-power engineering, and slope protection for geological disasters.

Capacity : 40m³/h


Product Features

  • 1. Adopt Open hydraulic system, which is with stable and reliable performance, low failure rate
  • 2. Integration control for mixing and pumping, wireless remote control which makes operation convenient.
  • 3. Adopt wear-resistant alloy materials for the concrete mixer, prolong the service life
  • 4. Main oil pump. Adopt domestic famous brand Kawasaki series.
  • 5. Lubrication system. Adopt automatic lubrication system, high oil pressure with stable lubrication effect.
  • 6. Power system. Adopt domestic and world famous motor or diesel engine.
  • 7. Control system. Adopt Japan Omron PLC control system, equipped with wireless remote control, makes the operation more flexible and convenient.
  • 8. S valve. Wear-resistant cast iron materials, enjoys the advantages of anti-high pressure and anti-wearing.
  • 9. Concrete piston. Precisely processed by imported material, enjoys the features of hydraulic resistant, wear resistant and high temperature resistant.

Product Parameter

Unit Pump with twinshaft mixer With pan mixer Mixer pump with batching machine
Concrete pump Theoretical output m3/h 40
Max. concrete pumping pressure Mpa 10
Power type Motor
Motor/engine kw 45/82/129
Main oil pump Kawasaki
Main oil pump capacity ml/min 112
Theoretical delivery distance m 160/500
Hopper capacity L 550
Max. aggregate diameter mm 30/40
Inside diameter of delivery pipe mm Φ150
Loading capacity of the mixer L 720
Unloading capacity of the mixer L 450
Mixing motor kw 5.5
Hoisting motor kw 4.5
Dimension length x width x height mm 4800x2200x2800
Total weight kg 5500
Mixer JS500/750 JW750/1000 JZC450
Concrete mixer Capacity m3/h 25/35 35/50 15
Mixer type Forced mixer Drum mixer
Batching machine Model PLD700-2

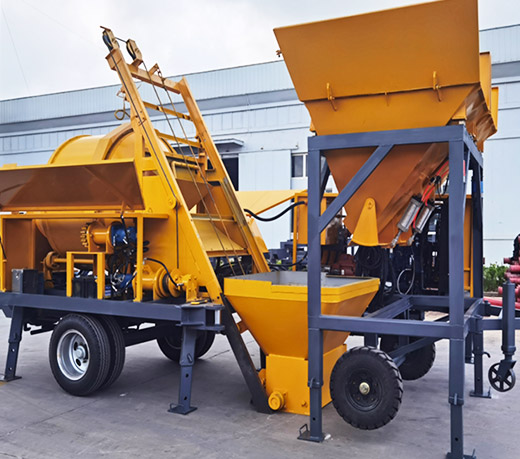

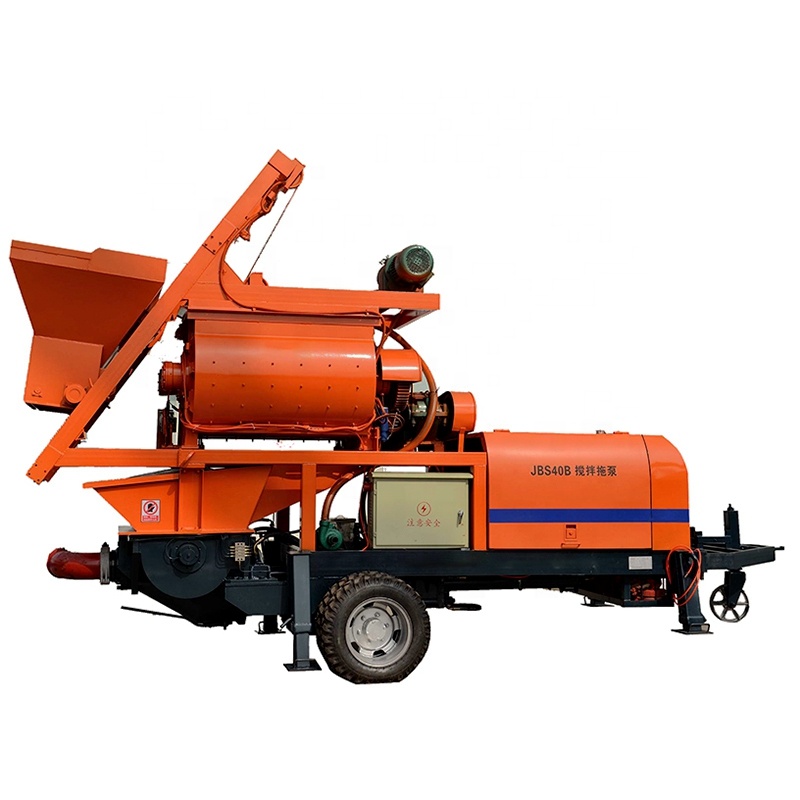

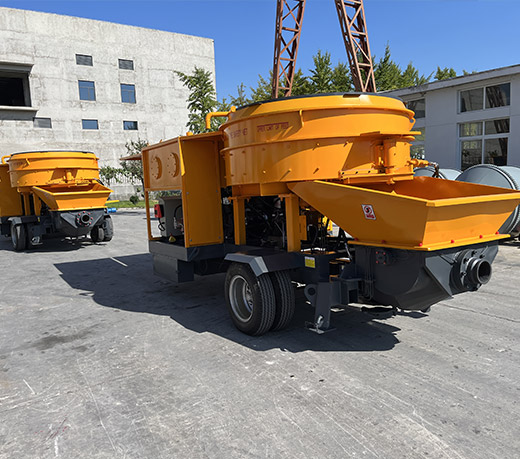

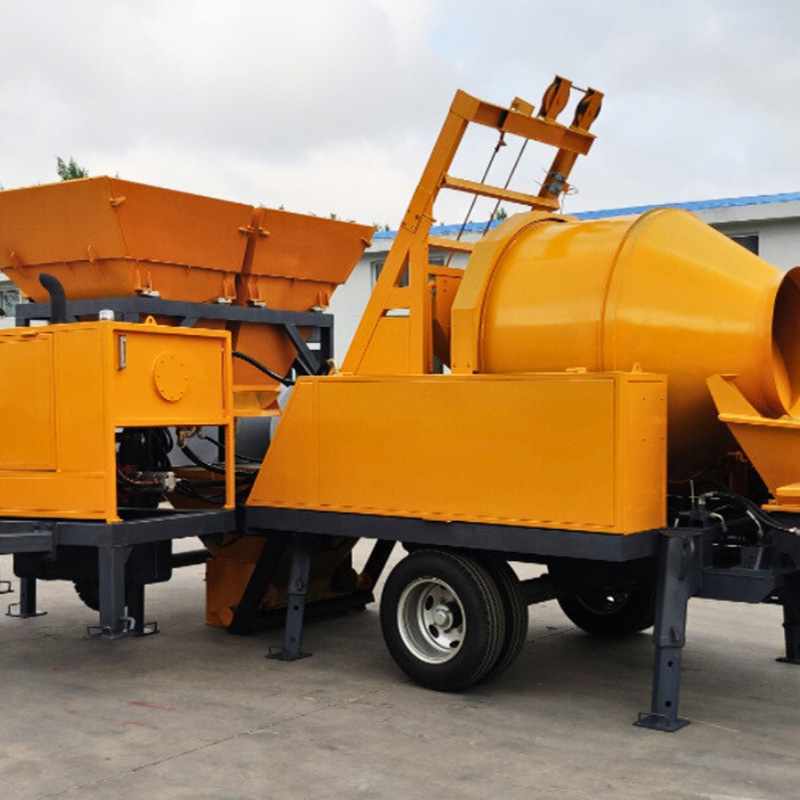

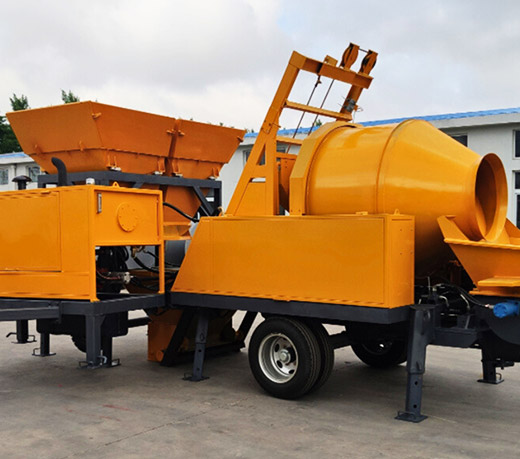

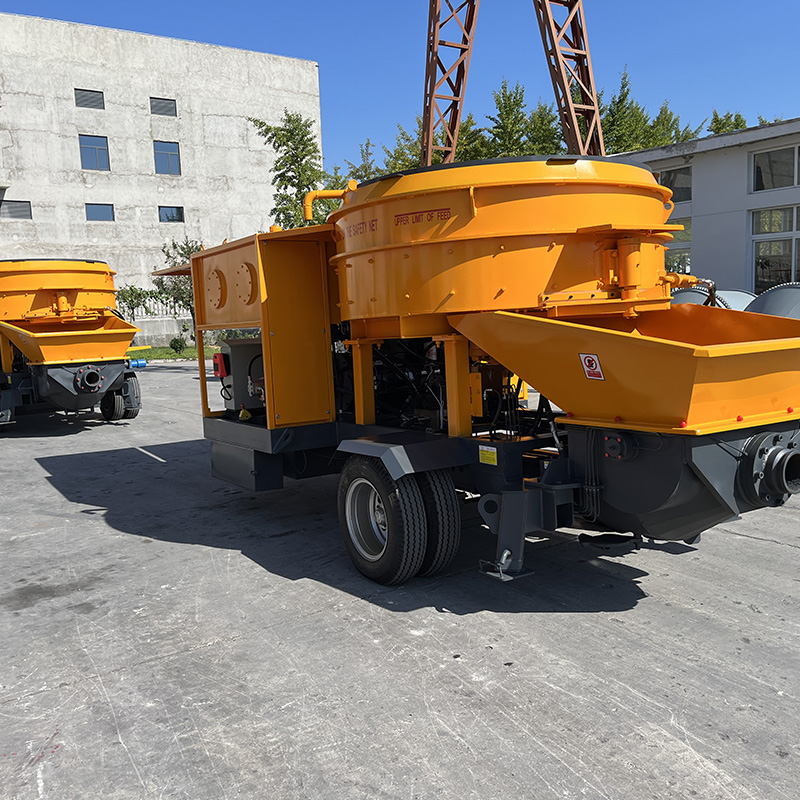

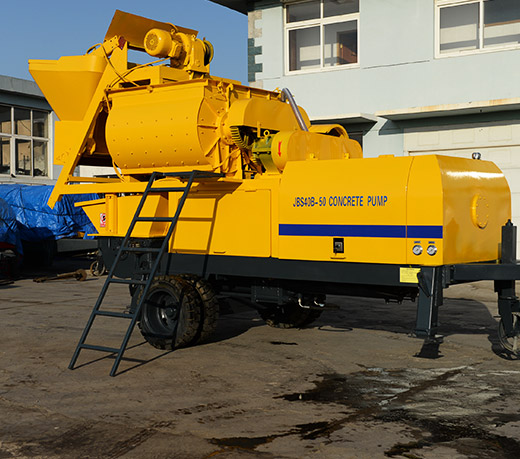

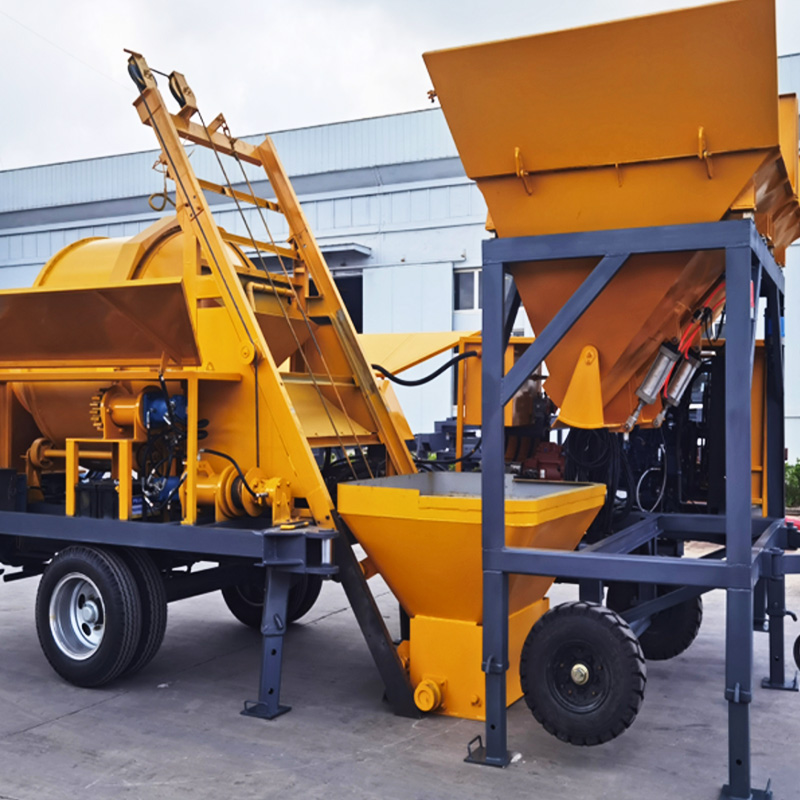

Product Display
