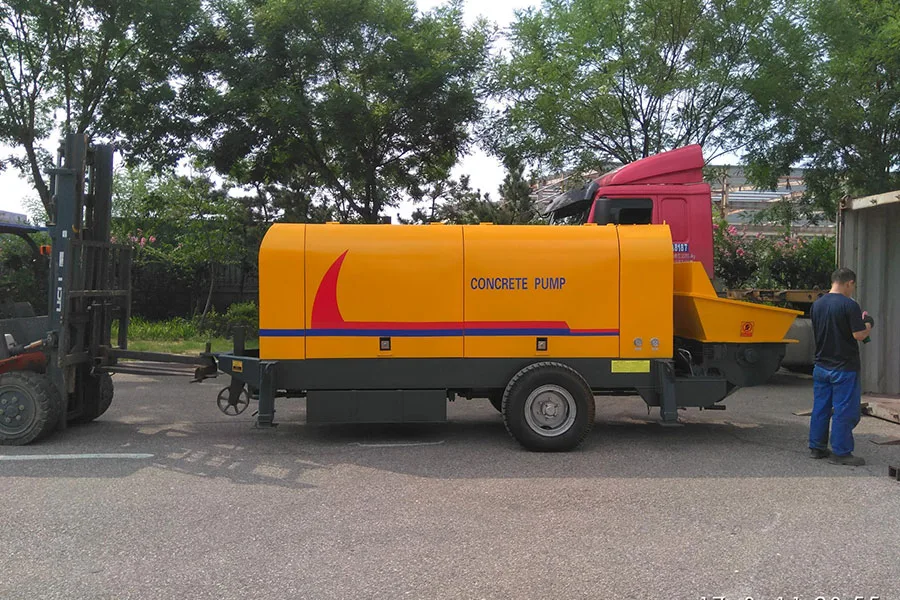

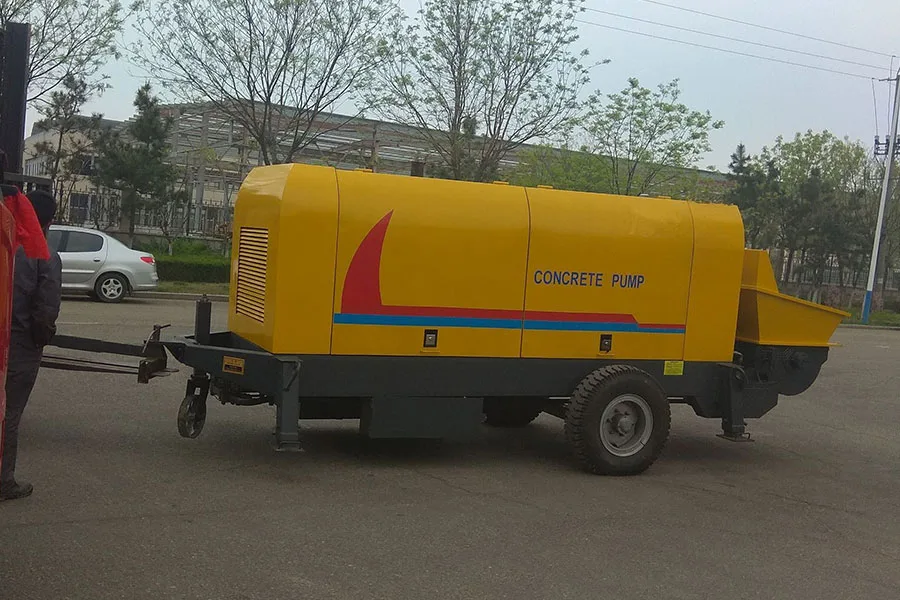

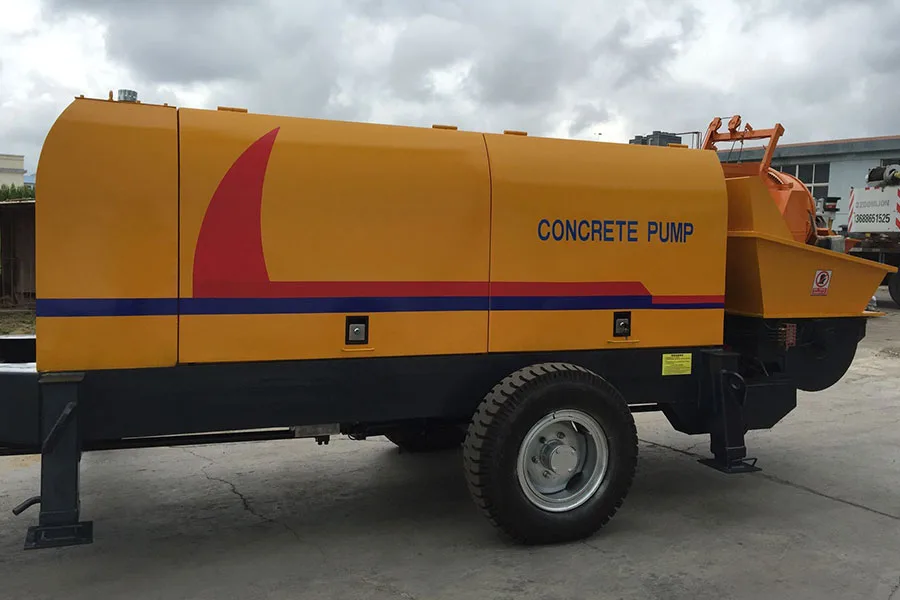

HBTS90 Diesel Concrete Pump
HBTS90 Diesel Concrete Pump is designed for stable concrete conveying with 90/55m3/h capacity, 18/9.3 MPa pumping pressure, S valve distribution and open hydraulic circuit. It is suitable for outdoor construction sites, remote areas and projects where electricity is unstable or unavailable.
Product Advantages
It is suitable for outdoor
Suitable for outdoor construction sites, remote areas and projects wher...
HBT electric and HBTS diesel power options
Reliable configuration for concrete machinery projects.
S valve distribution system
Reliable configuration for concrete machinery projects.
Open hydraulic oil circuit
Reliable configuration for concrete machinery projects.
Stable pumping performance
Reliable configuration for concrete machinery projects.
Long vertical and horizontal delivery distance
Reliable configuration for concrete machinery projects.
Technical Parameters
| Model | HBTS90 |
|---|---|
| Pump Type | Diesel Concrete Pump |
| Drive Type | Diesel engine driven |
| Max. Theoretic Capacity | 90/55m3/h |
| Max. Theoretic Pressure | 18/9.3 MPa |
| Diesel Engine Power | 176 kW |
| Maximum Vertical Distance | 300 m |
| Maximum Horizontal Distance | 1000 m |
| Distribution Valve Type | S valve |
| Hydraulic Oil Circuit Type | Open Circuit |
| Specification Of Concrete Cylinder | Dia.200 x 1800 mm |
| Specification Of Main Oil Cylinder | Dia.140 x 1800 mm |
| Oil Tank Capacity | 580 L |
| Hopper Capacity | 800 L |
| Max. Aggregate Diameter | Slick scree: 50 mm; Scree: 40 mm |
| Dimension | 6000 x 2000 x 1800 mm |
| Overall Weight | 6800 kg |
| Pulling Speed | <=8 km/h |
| Structure |
|
Application Scenarios
Residential Foundation Pumping
Flexible concrete delivery for housing projects.
High-rise Concrete Pumping
Concrete pumping for vertical construction sites.
Bridge and Tunnel Construction
Efficient concrete placement for infrastructure projects.
Road Retaining Wall Construction
Concrete pumping for road-side and municipal construction.
Working Process
01
Concrete Feeding Into Hopper
02
Hopper Mixing
03
Hydraulic Cylinder Driving
04
S Valve Direction Switching
05
Pipeline Concrete Delivery
06
Pouring At Target Position
Why Choose Hengyuan
20+ Years
Long-term concrete machinery manufacturing and export experience.
100+ Countries
Export-ready equipment and practical delivery support for global projects.
Professional R&D Team
Engineers provide reliable equipment design and project configuration.
ISO Quality Certified
Strict inspection and quality control before delivery.
24/7 Service
Responsive technical support for overseas construction sites.
Customized Solutions
Equipment layout and configuration matched to project needs.
FAQ
Q1: What type of concrete pump is HBTS90?
HBTS90 is a diesel concrete pump with diesel engine driven.
Q2: What is the pumping capacity of HBTS90?
The max. theoretic capacity is 90/55m3/h. Actual output depends on concrete mix, pipeline layout and site conditions.
Q3: What is the maximum pumping distance?
The reference vertical distance is 300 m, and the horizontal distance is 1000 m. Final performance depends on concrete slump, pipe diameter and project conditions.
Q4: What distribution valve does it use?
It uses an S valve distribution system with open hydraulic oil circuit for stable pumping performance.
Q5: Do you provide spare parts and after-sales service?
Yes. We provide wearing parts, technical support, operation guidance and after-sales service.
Q6: What is the warranty period?
The warranty period is 18 months.
